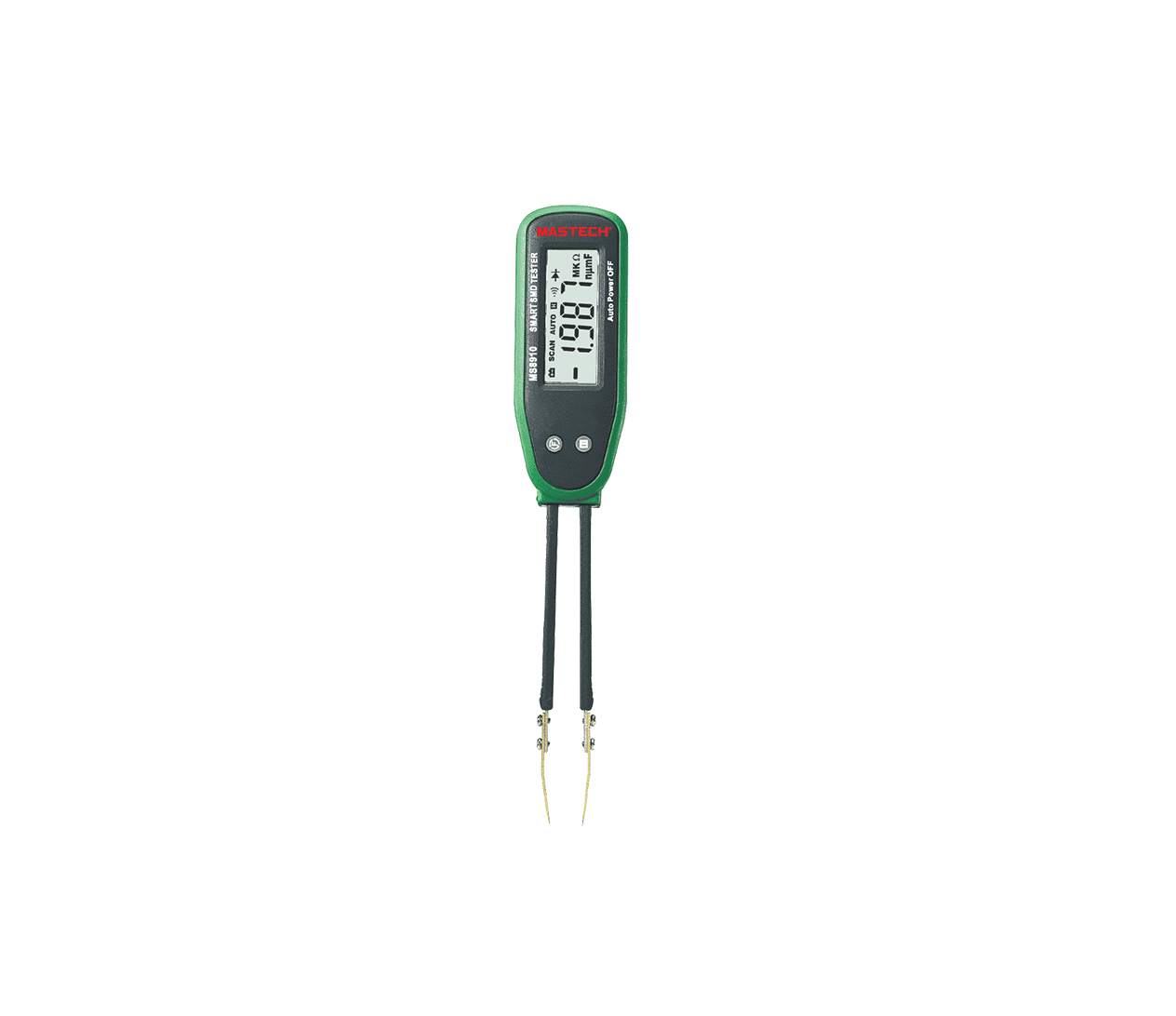

Mastech MS8910 LCR Meter

Description

The Mastech MS8910 is a smart SMD (Surface Mount Device) tester designed to measure resistance, capacitance, and diodes. It is not a general-purpose multimeter but is specifically made for testing small components found on printed circuit boards (PCBs), using integrated tweezer-like probes for easy handling.

Key Features

• Automatic functions: The device features both auto-ranging and auto-scanning, which automatically identifies the component type (resistor, capacitor, or diode) and selects the appropriate measurement range.
• SMD test tweezers: The integrated probe tweezers are gold-plated to reduce contact resistance and prevent rust, allowing for precise contact with tiny components.
• 3000-count LCD display: Provides clear digital readings for easy interpretation of measurements.
• Resistance measurement: Measures resistance in ranges from 300Ω up to 30MΩ.
• Capacitance measurement: Measures capacitance in ranges from 3nF up to 30mF.
• Diode check: Tests diodes with an open voltage of 2.8V and a testing current of 2mA.
• Continuity buzzer: An audible buzzer sounds when resistance is less than 30Ω, making it easy to identify short circuits.
• Convenience features: Includes data hold to freeze readings and auto power-off to save battery.
• Portability: Small, lightweight, and handheld design makes it easy to carry and use in various locations.
