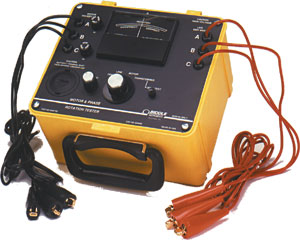

Megger 560400 Phase/Motor Rotation Tester, 25/50/60/400Hz

Description

The Megger 560400 is a phase and motor rotation tester that is a comprehensive tool used to verify electrical connections in motors and energized power circuits. Its rugged, portable design makes it suitable for use by electricians and industrial maintenance personnel.

Key features

• Multiple functions: The 560400 combines several testing functions in a single instrument. It can be used to test:
• Phase sequence/rotation: Determines the correct phase rotation of energized AC power lines up to 600 volts. This is crucial for ensuring a motor rotates in the intended direction.
• Motor rotation: Confirms the rotation direction of one-, two-, or three-phase motors before they are connected to a power line.
• Transformer polarity: Identifies the correct polarity of instrument and power transformers.
• Continuity: Can be used to check for continuity in electrical circuits.
• Broad frequency range: Operates across a wide range of frequencies, including 25, 50, 60, and 400 Hz, making it suitable for various applications.
• Simple and safe operation: Eliminates the need for potentially hazardous temporary connections to determine motor rotation. It uses a DC zero-center ammeter to indicate correct or incorrect rotation or polarity.
• Durable design: Enclosed in a high-impact ABS plastic case with a handle and removable lid for ruggedness and portability.
• Included accessories: Comes with attached test leads, standard fuses, an alkaline D-battery, and an instruction manual.
