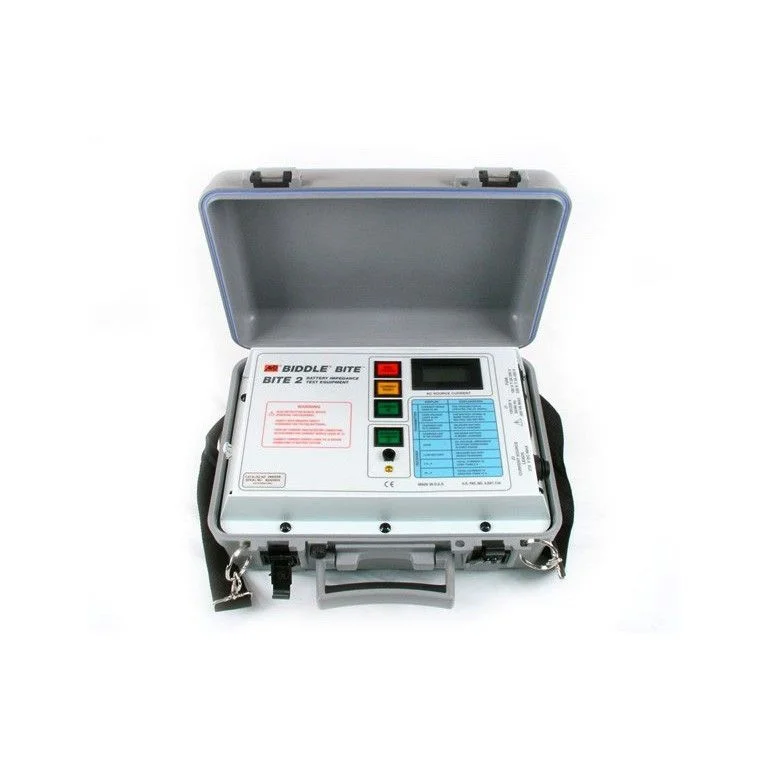

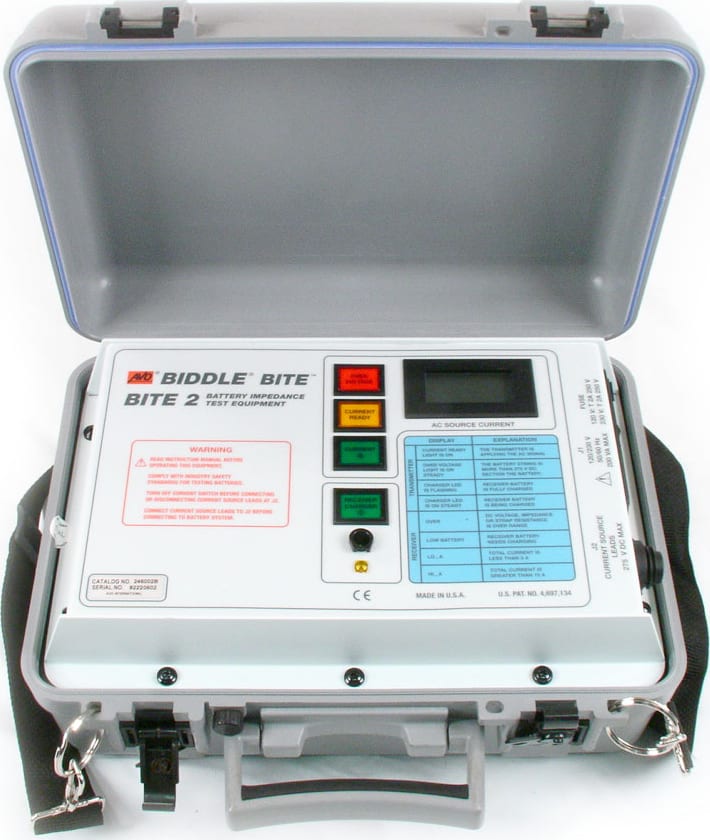

Megger BITE2P Battery Impedance Tester

Description

The Megger BITE2P is a battery impedance tester designed for assessing the condition of lead-acid and nickel-cadmium battery cells up to 7000 Ah without taking the battery system offline. The "P" in the model name indicates that the unit includes a built-in printer for immediate, on-site test result printouts. This tool is widely used for battery maintenance in industrial and commercial applications.

Key features

• On-line testing: The BITE2P can perform impedance, DC voltage, and intercell resistance measurements while the battery system is still connected and operational. This eliminates the need for system downtime.
• Quick and efficient: A single operator can perform accurate measurements in less than 20 seconds per cell.
• Built-in thermal printer: The integrated printer allows for immediate hard-copy records of test data, which is useful for on-site analysis and record-keeping.
• Data storage and management: The unit can store over 2,000 sets of readings from up to 300 different tests. An RS-232 connection allows for downloading data to a PC for further analysis using the included PowerDB LITE software.
• Pass/Warning/Fail indications: The tester provides on-board, user-defined Pass/Warning/Fail calculations based on a set baseline value, giving clear and immediate feedback on battery health.
• AC ripple current measurement: It can measure the AC ripple current, which helps evaluate the condition of the battery charger.
• Robust and reliable: The instrument is housed in a rugged, portable carrying case and provides consistent, repeatable measurements.
