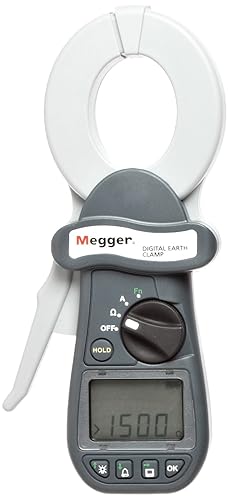

Megger DET14C Earth/Ground Clamp-on Resistance Tester

Description

The Megger DET14C is a digital, clamp-on earth/ground resistance tester used to measure resistance in multi-grounded systems without disconnecting the ground. The elliptical clamp design allows for easy access to cables and earth straps in tight spaces.

Key features

• Measurement Capabilities: It measures ground resistance from 0.05Ω to 1500Ω and true RMS ground leakage current from 0.5 mA to 35 A.
• Design: The elliptical clamp shape (37 mm diameter cable, 50 mm earth tapes) and a low-maintenance flat jaw interface help to improve access and reliability.
• Safety: The device has a CAT IV 600V safety rating and a safety feature that provides automatic current measurement.
• Functionality: It includes a data hold function, high and low alarms, an audible buzzer, and a backlit LCD for use in low-light conditions.
• Memory: The DET14C can store up to 256 records with time and date stamps for later on-screen recall.
• Other features: The tester has a built-in filter for high electrical noise environments and an automatic power-down feature to conserve battery life.
