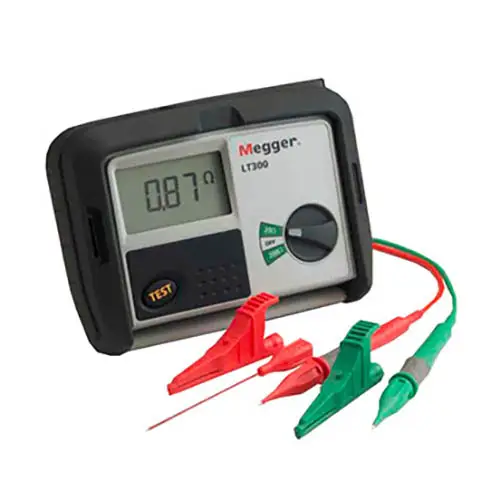

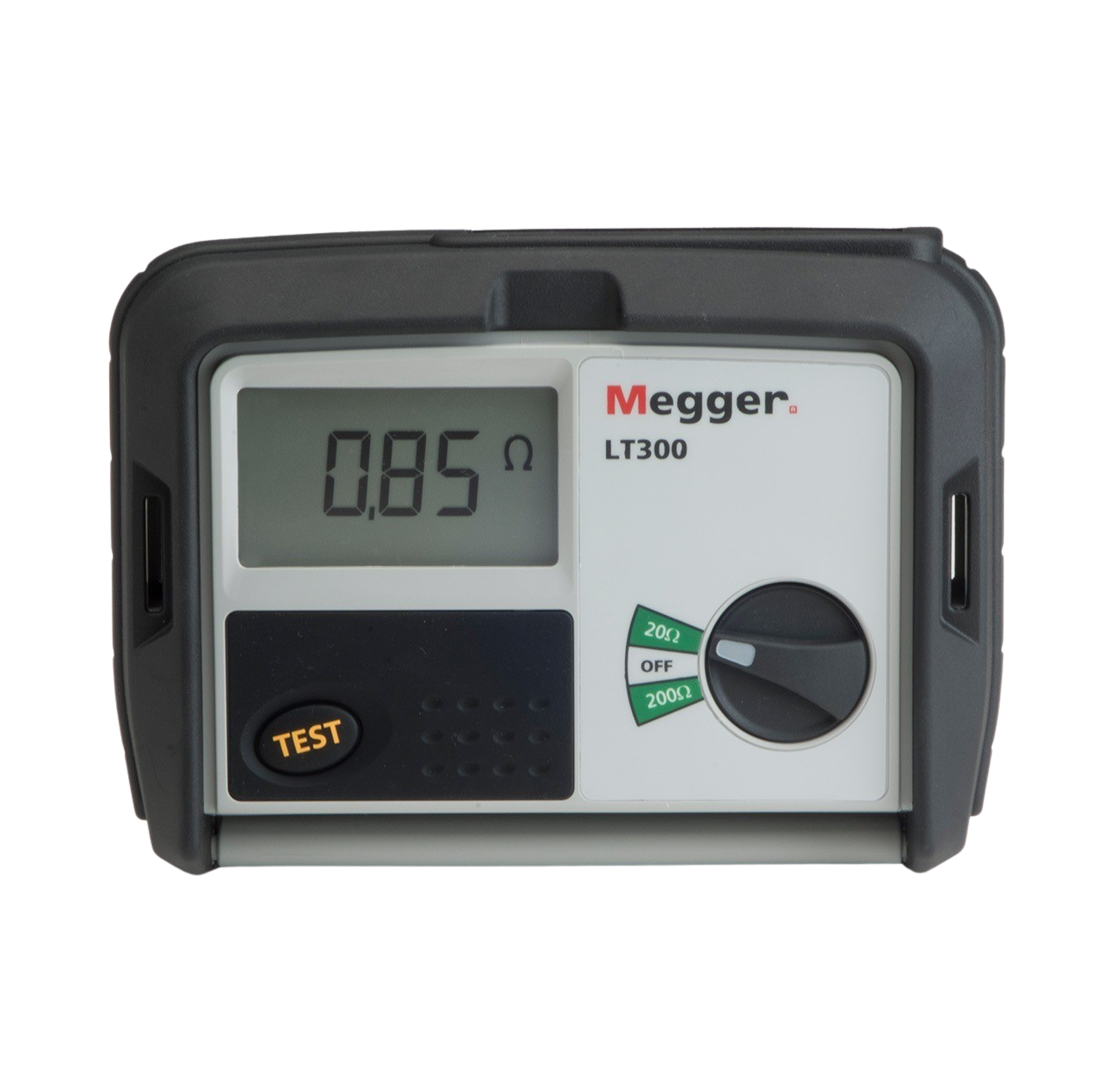

Megger LT300-EN-00 Loop Impedance Tester, EN-00 50V-550V, Single

Description

The Megger LT300-EN-00 is a high-current, two-wire loop impedance tester designed for use on single and three-phase circuits between 50V and 550V. It is specifically intended for installations that do not have Residual Current Devices (RCDs).

Key features

• Two-wire testing: Provides fast and simple two-wire loop impedance measurements.
• High-current test: Capable of a high-current loop test of up to 27A on the 20Ω range.
• Wide voltage range: Operates on a wide range of supply voltages, from 50V to 550V (up to 400V at 16Hz).
• Automatic frequency detection: Automatically indicates and sets itself to the measured supply frequency (16Hz, 50/60Hz, or 400Hz) upon connection.
• Fast and accurate results: Delivers accurate and stable results with a resolution of 0.01Ω on the 20Ω range.
• Automatic testing: Testing begins automatically when the instrument is connected to the supply.
• Tough and protected case: Housed in a rubber-armored, IP54-rated case with a built-in cover to protect the display.
• Includes accessories: Comes with a red/green two-wire lead set for connections.
• Safety rating: Rated to European Standard 61010-1, CAT IV 300V phase-to-earth and 550V phase-to-phase.
