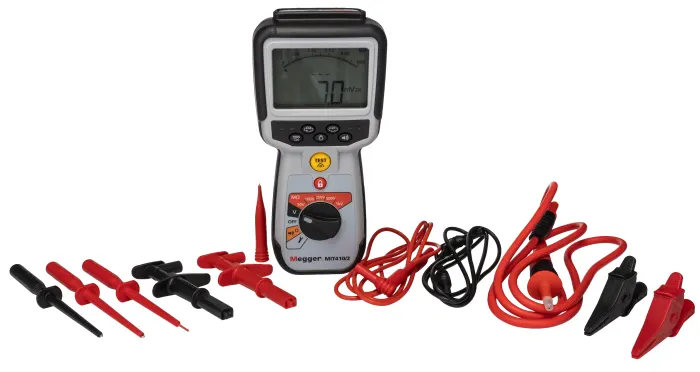

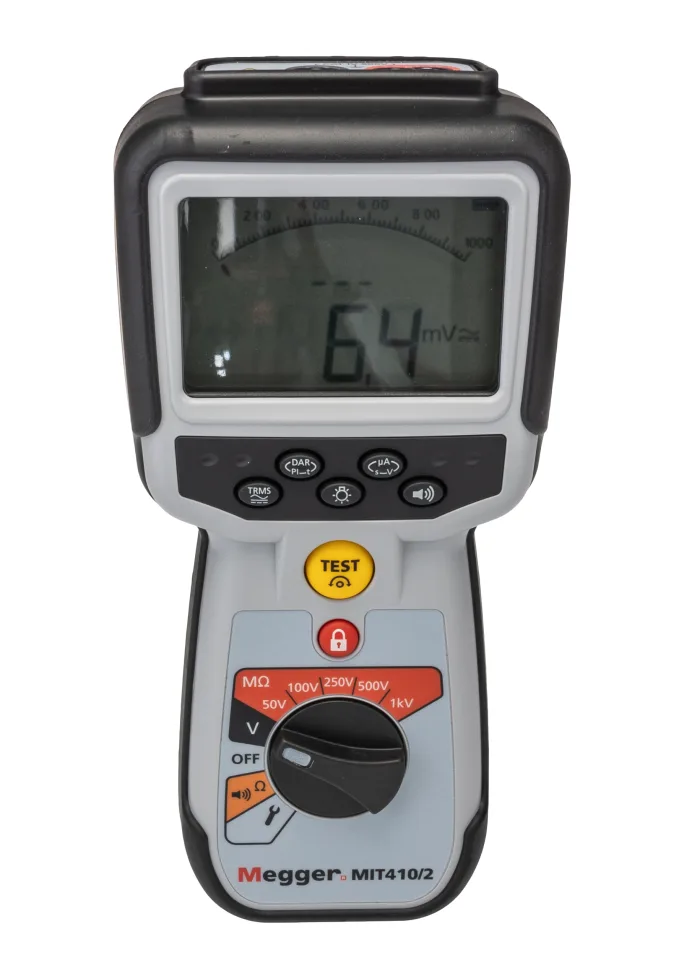

Megger MIT410/2 1000V Insulation Resistance Tester with PI, DAR & Time Testing

Description

The Megger MIT410/2 is a high-performance insulation and continuity tester with a maximum test voltage of 1000V. It is designed for electrical and industrial testing applications, including cable testing, motor testing, and avionics.

Key features

• Test voltages: The MIT410/2 can perform insulation testing at 50V, 100V, 250V, 500V, and 1000V.

• High accuracy: It uses a feedback-controlled test voltage that limits over-voltage to 2% (compared to the industry standard of 10–20%), resulting in more accurate test voltages.

• Wide test range: It offers an insulation resistance test range of up to 200 GΩ.

• Continuity testing: It features a single, faster, auto-ranging continuity test from 0.01 Ω to 1 MΩ.

• Safety features: The device includes live circuit detection and protection, and is rated for CAT IV 600V applications.

• Durability: Its tough, over-molded ABS housing provides shock absorption and an IP54 weatherproof rating.

• Advanced functions: The MIT410/2 model includes Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions.

• Dual display: The screen combines an analog arc with a dual digital readout for easy reading of measurements and additional data.
