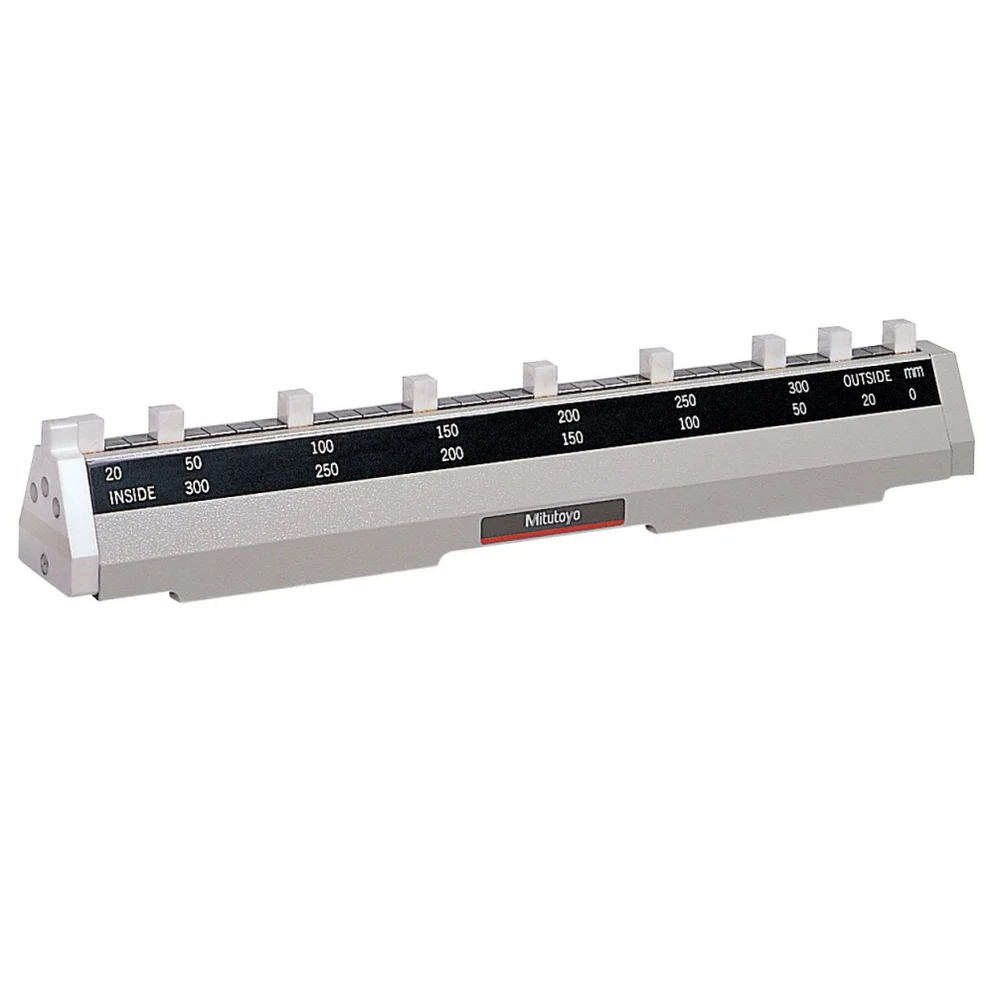

The Mitutoyo 515-555 CERA Caliper Checker has the following features:
The CERA caliper checker is designed to inspect Vernier, Dial, and Digimatic Calipers
It is comprised of permanently wrung, high-grade CERA gage blocks in a protective casting
The zirconia-based ceramic CERA measuring blocks are corrosion-resistant and dimensionally stable
The CERA caliper checker also stands perpendicular to a surface for height gauge inspection
TECHNICAL DATA
Range: 0-300mm
Outside Measurements: 20, 50, 100, 150, 200, 250, 300mm
Inside Measurements: 20, 50, 100, 150, 200, 250, 300mm
Parallelism of Blocks: 0.002mm for a range of up to 300mm
Block Pitch Accuracy: ±0.005mm for a range of up to 300mm
Mass: 4kg
