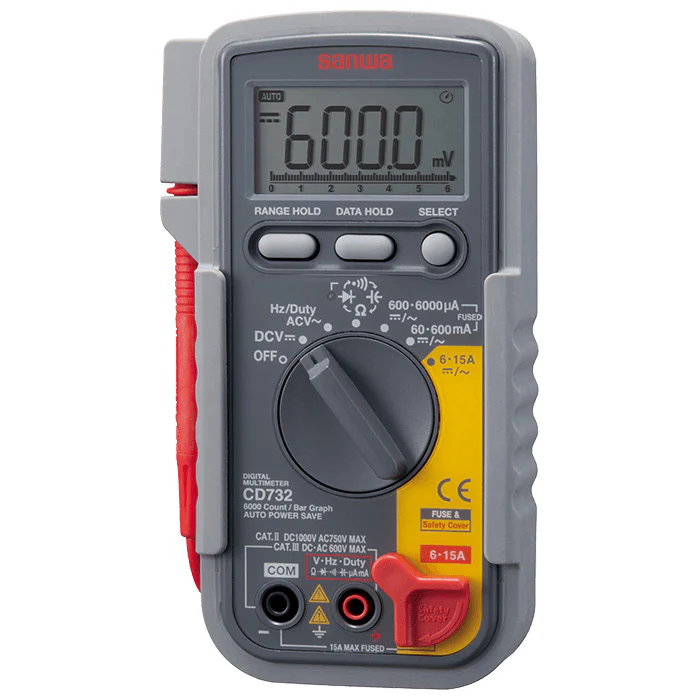

Sanwa CD732 Digital Multimeter with High-Speed Bar Graph & Continuity Buzzer with LED

188Description

The Sanwa CD732 is a durable, professional-grade digital multimeter (DMM) known for its high-speed bar graph display and enhanced safety features. Made in Japan, it is suitable for a wide range of applications, including analyzing low-voltage circuitry, and testing home appliances and communication equipment.

Key Features

• Display: It features a 6000-count digital LCD with a fast, 61-segment analog bar graph for quick visual trend analysis.
• Measurement functions:

     1. Voltage: Measures up to 1000V DC and 750V AC.

     2. Current: Measures up to 15A for both AC and DC.

     3. Resistance: Measures up to 60 MΩ.

     4. Capacitance: Covers a wide range, from 0.01nF to 3999µF.

     5. Frequency: Measures up to 99.99 kHz.

     6. Continuity: Features both an audible buzzer and a red LED indicator to confirm a short circuit.

     7. Diode test: An open voltage of approximately 2.7V is provided for testing diodes.

• Safety and durability: The CD732 is built with user protection in mind.

     1. The casing and circuit boards are made from fire-retardant materials.

     2. It includes a safety cover over the 6/15A current terminals to prevent incorrect probe insertion.

     3. It complies with international safety standards, including CAT III 600V and CAT II 1000V.

• Operational features:

     1. Auto and manual ranging: You can choose between automatic or manual range selection for measurements.

     2. Data hold: Freezes the displayed reading for easier recording.

     3. Range hold: Locks the meter to a specific measurement range.

     4. Auto power-off: Conserves battery life by automatically shutting off after about 16 minutes of inactivity, though this function can be disabled.

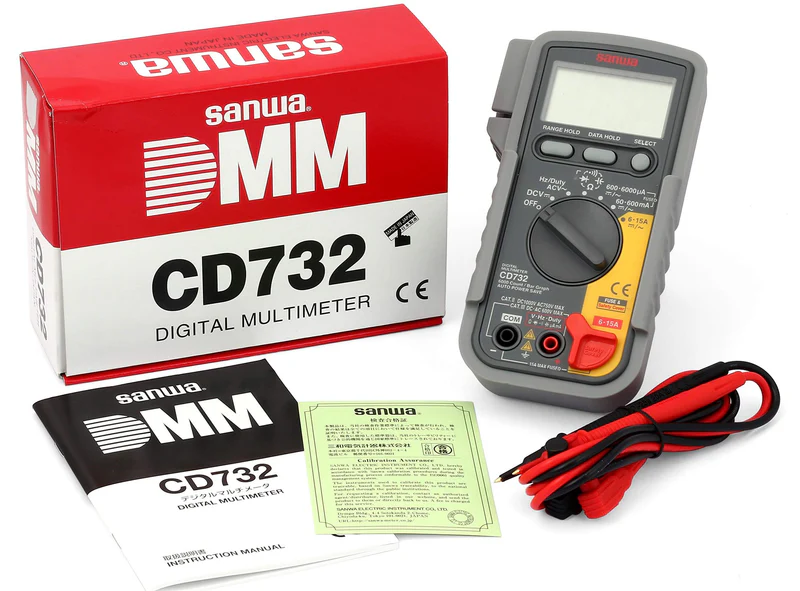

• Design: The multimeter includes a holster that can hold the test leads and be used as a wall-hanging bracket for hands-free operation.
