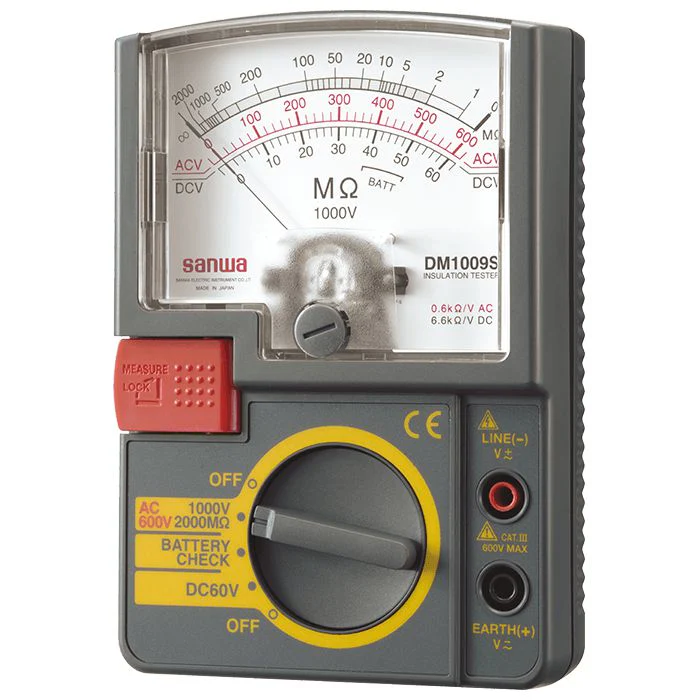

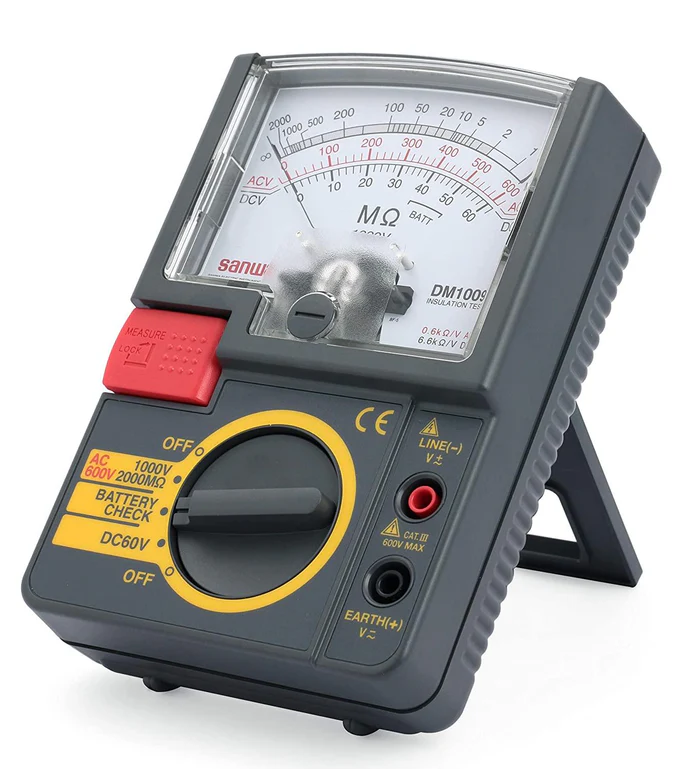

Sanwa DM1009S 1000V Portable Insulation Resistance Meter

Description

The Sanwa DM1009S is a portable, analog insulation resistance meter (also known as a megohmmeter) that can apply a test voltage of up to 1000V DC. It is used to measure the insulation resistance of electric lines and equipment.

Key Features

• Insulation Resistance Testing: The DM1009S can test insulation resistance with a 1000V DC test voltage, and has a measurement range of up to 2000 MΩ.
• Voltage Measurement: It also functions as a voltmeter, with ranges for both AC and DC voltage. (AC Voltage: 0–600V AC), (DC Voltage: 0–60V DC).
• Analog Display: Unlike digital meters, this model features an analog pointer display for clear, easy-to-read measurements.
• Auto-Discharge Function: The meter automatically discharges any residual voltage in the circuit after a test, enhancing user safety.
• Overload Protection: It is rated for safety up to CAT III 600V.
• Measurement Modes: A push switch allows for either one-shot or continuous measurement.
• Portability: With a compact and lightweight design (approx. 310g without battery), the DM1009S is highly portable. It comes with a carrying case and shoulder strap for convenient transport.
• Battery Check: The meter includes a built-in function to check the internal battery's condition.
