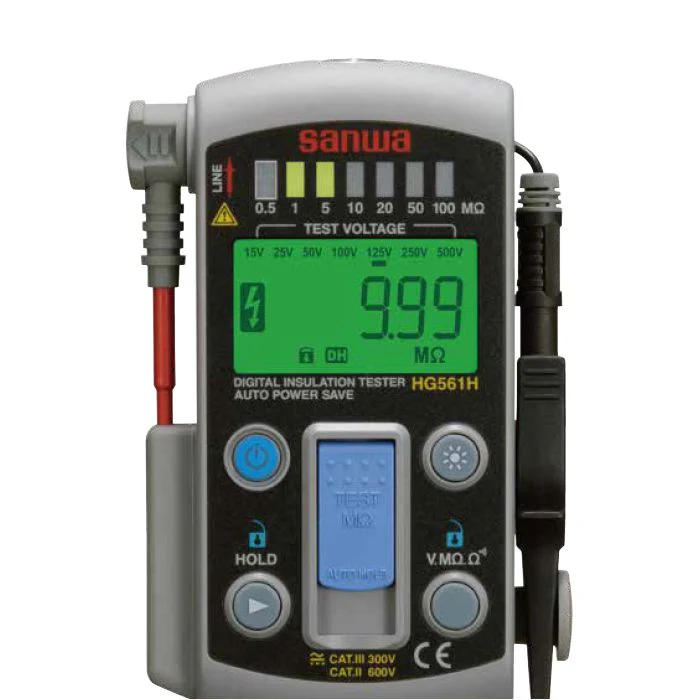

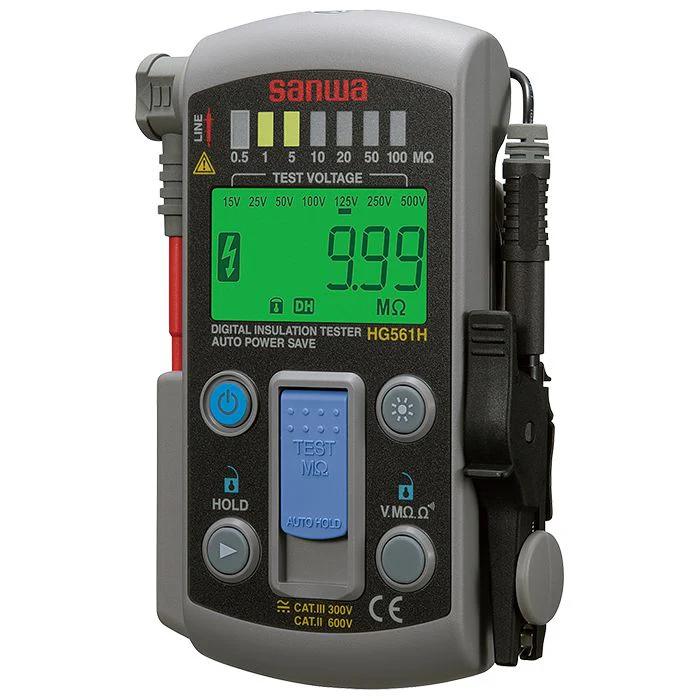

Sanwa HG561H Smart Style 7 Range Insulation Resistance Tester

Description

The Sanwa HG561H is a compact, digital insulation resistance tester with seven selectable test voltage ranges. It is known for its "smart style" features, such as an integrated probe, fixed decimal point for readability, and robust safety functions.

Key Features

• Seven selectable test voltages: The HG561H offers seven test voltage options, from 15V to 500V. This allows you to select only the required voltage range for specific testing needs and prevents accidental use of higher voltages.
• Integrated probe: The all-in-one body design with an integrated test probe allows for convenient one-handed operation. This is especially useful for accessing hard-to-reach areas like the holes in circuit breaker covers.
• Safety features: A live-circuit detection function automatically detects if a live wire (over 30V) is present before a test and will display the voltage instead of running the insulation test. It also includes an auto-discharge function after the measurement is complete.
• Backlit LCD and LED light: The clear LCD with a fixed decimal point is easy to read. It also features a backlight for use in dark locations and an LED light to illuminate the test area.
• Automatic data hold: This function freezes the reading on the display after a measurement, allowing you to view and record the value easily after removing the test leads.
