Sanwa LCR701 Handheld Digital LCR Meter
Sanwa LCR701 Handheld Digital LCR Meter
Sanwa LCR701 Handheld Digital LCR Meter
Sanwa LCR701 Handheld Digital LCR Meter
Sanwa LCR701 Handheld Digital LCR Meter
Sanwa LCR701 Handheld Digital LCR Meter

Sanwa LCR701 Handheld Digital LCR Meter

Brand
SANWA

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Available to Order

DescriptionThe Sanwa LCR701 is a high-performance handheld digital LCR meter used for accurate measurement of inductance (L), capacitance (C), and resistance (R
$257.79

🛡️ Buy with Confidence

  • Shipping: $30 flat rate across the USA
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: NCIEM America – National Company of Industrial Equipment Marketing America LLC (USA)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: United States only, Policies apply to purchases made on nciem.us
Description

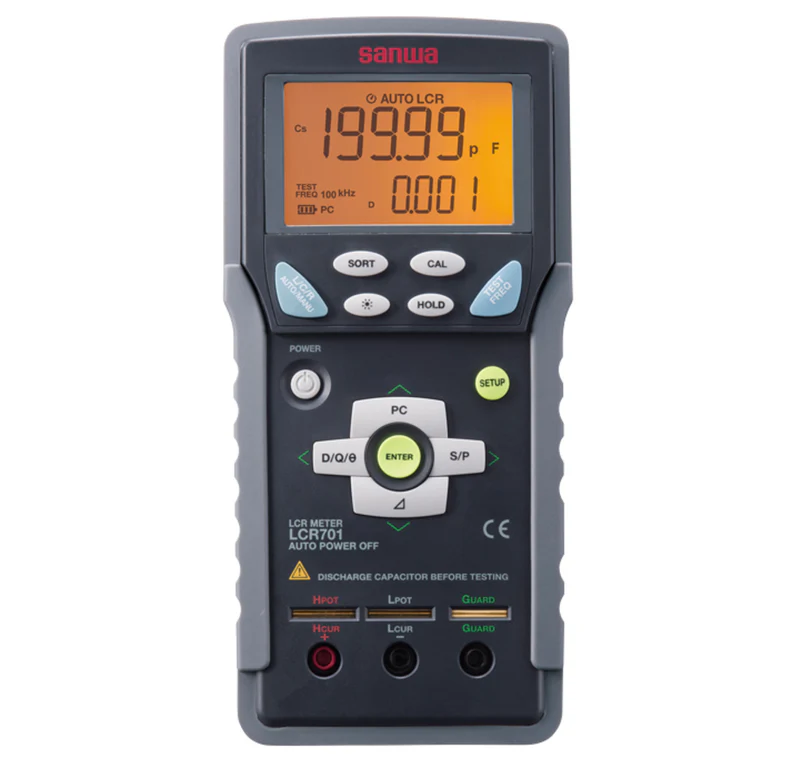

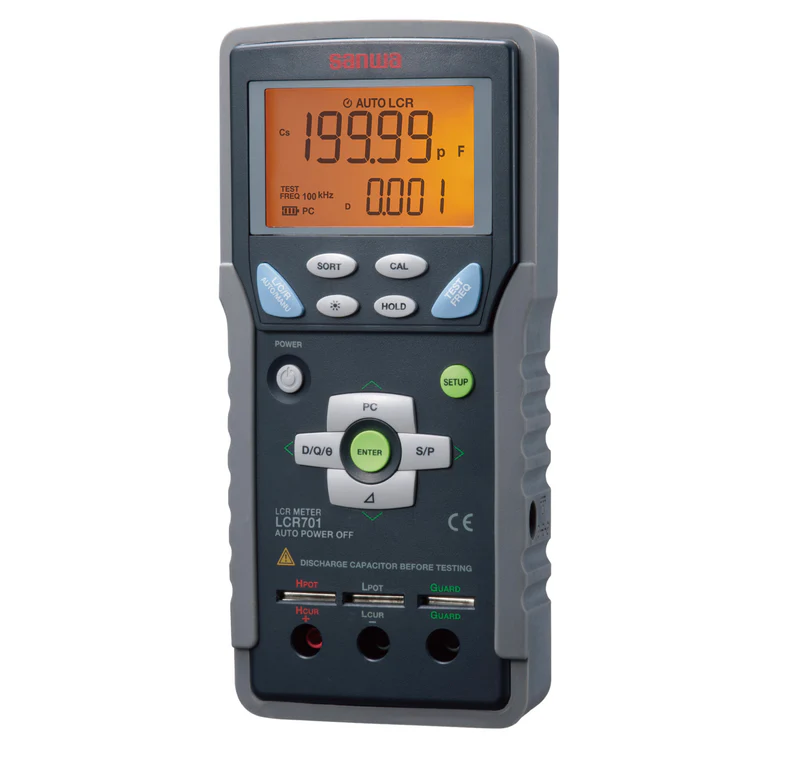

The Sanwa LCR701 is a high-performance handheld digital LCR meter used for accurate measurement of inductance (L), capacitance (C), and resistance (R). It is a versatile and portable device with advanced features that rival many benchtop LCR meters.

Key Features
  • Automatic L/C/R selection: The meter can automatically identify and select the correct measurement function for a component, making it easy to use.
  • Multiple test frequencies: It can perform measurements at five different frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.
  • Series/Parallel measurement mode: The LCR701 offers both selectable series and parallel measurement modes to accurately characterize components.
  • Device sorting mode: This feature allows users to quickly sort passive components for incoming inspections or quality control by setting PASS/FAIL thresholds.
  • DC resistance (DCR) function: The meter can measure DC resistance across seven different ranges, from 200.00 Ω up to 200.0 MΩ.
  • Open/Short calibration: A calibration function helps to minimize measurement errors caused by test leads and fixtures.
  • Five-terminal measurement: The unit supports five-terminal measurement (four terminals plus guard shielding), which helps increase accuracy.
  • PC connectivity (optional): With an optional optical link USB communication unit (LCR-USB) and free software, measurement data can be transferred to a PC.
  • Additional functions: Includes a data hold function, backlight for low-light conditions, auto power-off, and relative value measurement.
  • Sub-parameter measurements: In addition to L, C, and R, the meter can measure secondary parameters such as:

                  1. Dissipation Factor (D): The measure of the loss in a component.

                  2. Quality Factor (Q): The ratio of a component's reactance to its resistance.

                  3. Phase Angle (θ): The phase difference between voltage and current.

                  4. Equivalent Series Resistance (ESR): The total internal resistance of a component.


Download Data Sheet
