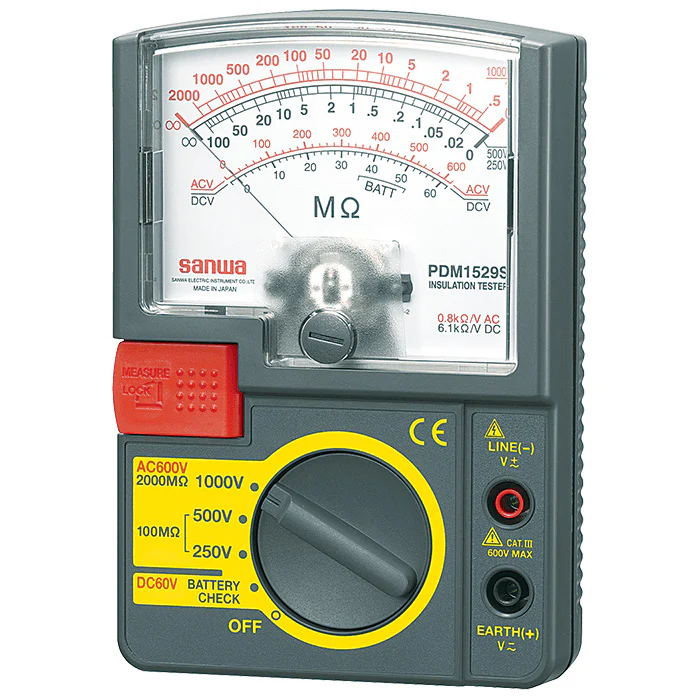

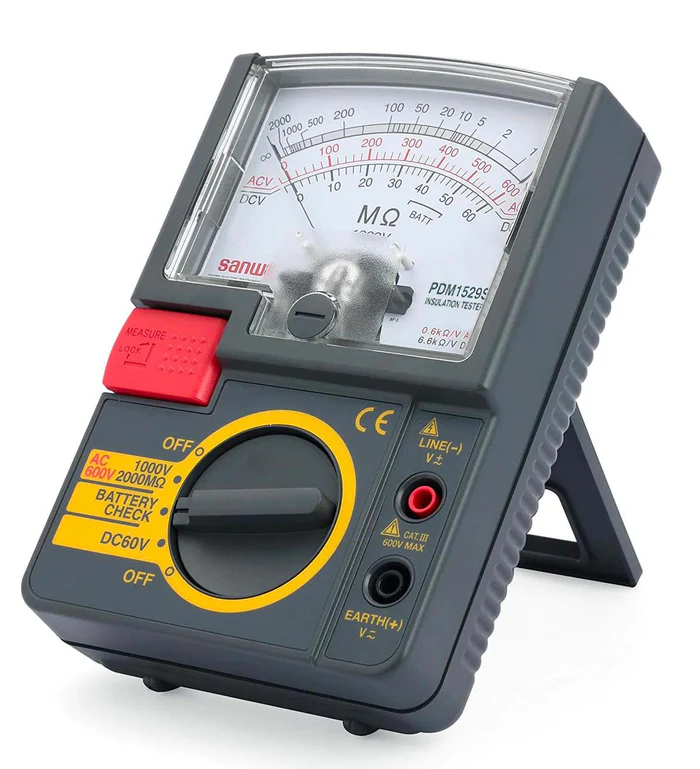

Sanwa PDM1529S | 1000V / 500V / 250V Analog Insulation Tester / Portable Insulation Resistance Meter

Description

The Sanwa PDM1529S is a portable analog insulation tester used for measuring the insulation resistance of electrical equipment and wiring. It features three different DC test voltage ranges and can also measure AC and DC voltage.

Key Features

• Analog display: Uses a clear, easy-to-read analog meter with minimal scale graduations.
• Insulation resistance: Measures insulation resistance at three DC voltage levels:

               1. 1000V DC (up to 2000 MΩ)

              2. 500V DC (up to 100 MΩ)

              3. 250V DC (up to 100 MΩ)

Voltage measurement: Capable of measuring both AC and DC voltages:

          1. AC voltage: 600V max

         2.  DC voltage: 60V max

• Test switch: Features a push-button test switch for either single or continuous measurement.
• Safety features: Includes an auto-discharge function that automatically releases electrical charge from the circuit after a test.
• Built-in battery check: An internal function allows for checking the battery's charge level.
• Safety rating: The unit is IEC61010-1 CAT.III 600V certified.
