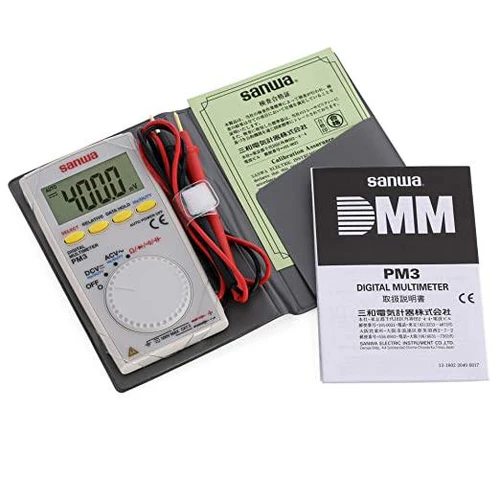

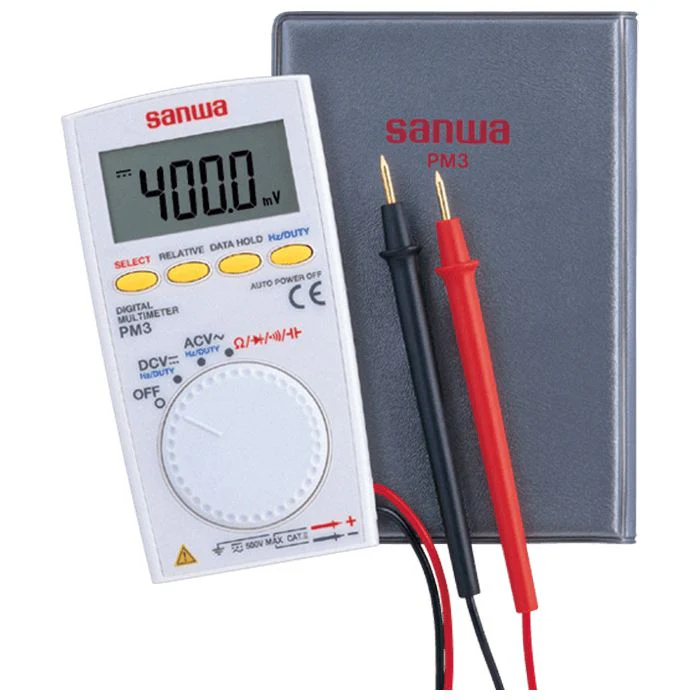

DescriptionThe Sanwa PM3 is a pocket-sized digital multimeter designed for testing low-voltage circuits in electronics, small communications equipment, and household appliances. It is a thin, lightweight device that is highly portable, and some variants come with a protective leather or folding case. |
Key FeaturesDisplay: It features a 3-3/4 digit, 4000-count digital LCD with a sampling rate of 3 times per second. Compact design: The PM3 has a slim body, measuring just 8.5mm thick, making it easy to carry in a shirt pocket. Convenient case: Many variants are supplied with a leather or folding case that protects the device from moisture and dust. Safety rating: The meter is IEC61010-1 CAT. II 500V compliant, suitable for measurements on standard wall sockets and plug-in devices. Power-saving functions: It includes an auto power-off function that activates after 15 minutes of inactivity to preserve battery life. This feature is also cancelable. Data hold: A "Data Hold" feature allows you to freeze the current measurement on the screen. Gold-plated leads: Some versions feature gold-plated test leads, which improve electrical contact. Measurements: The PM3 can measure a variety of electrical parameters, including: 1. AC/DC Voltage (up to 500V) 2. Resistance (up to 40MΩ) 3. Capacitance (up to 200μF) 4. Frequency (AC sine wave only) 5. Duty cycle 6. Continuity with a buzzer 7. Diode testing
|
