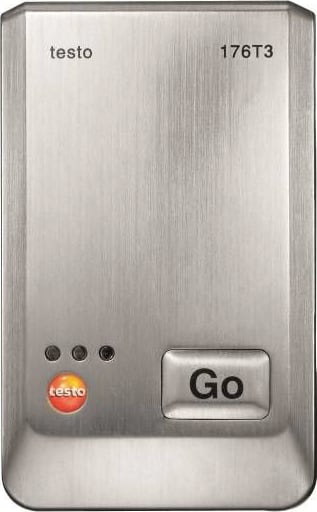

Testo 176 T3 - Four Channel Temperature Datalogger

Description

The Testo 176 T3 is a 4-channel temperature data logger that uses external thermocouple probes (Types K, T, or J) to simultaneously monitor temperatures at up to four different points. Its robust metal housing makes it ideal for long-term monitoring and documentation in harsh industrial environments.

Key Features

• Four-channel measurement: The logger can connect up to four external thermocouple probes, allowing for parallel temperature measurements at multiple locations. This is useful for monitoring process temperatures or the flow and return temperatures in heating systems.
• Wide measuring range: The temperature range and accuracy are dependent on the type of thermocouple probe used. For example, a Type K probe can measure from \(-200\) to \(+1000\) °C, and a Type T probe can measure from \(-200\) to \(+400\) °C.
• Rugged metal housing: The IP65-rated metal housing protects the logger from impacts, dust, and water jets, ensuring reliable operation in demanding environments.
• Large data memory: The device can store up to 2 million measurement values, making it suitable for long-term monitoring campaigns.
• Long battery life: Powered by a long-life lithium battery, the logger can operate for up to 8 years at a 15-minute measurement cycle.
• High data security: Measurement data is securely stored within the device and is protected from being lost, even when the battery runs out.
• Flexible data transfer: Data can be read out and transferred to a PC using a mini-USB port or an SD card slot.
• Free software: Testo's ComSoft Basic software is available for free download and provides tools for programming the logger and analyzing measurement data.
