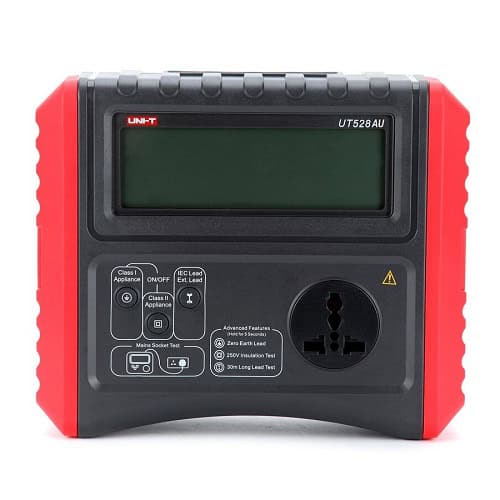

| Description: The UT528AU PAT tester from Uni-T is now available and configured to AS/NZS electrical standards. The UT528AU is the new version of the UT527/UT528 PAT testing machine that conducts tests on Class I and Class II appliances, as well as extension leads using a separate test sequence. Using a simple three-button operation the Uni-T is easy to use and handy for individuals who would prefer a simple PAT instrument. The Uni-T UT528AU carries out the basic required tests upon selection of the appliance type (Class I / Class II / Extension Lead) in an automatic test sequence and displays the readings and PASS/FAIL status at the end of the test. Aside from the basic test requirements the UT528AU PAT Tester also has the following features inbuilt: Zero Earth Lead function: Used to zero out resistance built up within the earth test lead to avoid inflated Earth Bond readings as a result. 250V Insulation Test option: In addition to the standard test voltage at 500V, a lower voltage of 250V can be selected. This is ideal when testing extension leads with surge protection. 30m Long Lead Test: Activated when testing extension leads exceeding 30m in length. This increases the earth resistance allowance in accordance with guidelines for long extension leads. The Uni-T UT528AU is capable of testing all standard appliances fitted with a 240V plug and all standard 240V 13A extension leads and IEC leads. Using a low test current exclusively at 200mA the Uni-T UT528AU is also safe for testing any IT equipment. The UT528 comes supplied in a hard plastic carry case that holds the instrument and accessories. The kit also includes an earth bond lead with probe and clip, 230V extension lead adaptor, earth nulling adaptor, 6 x C cell batteries and instruction manual. |
| FEATURES: Battery-powered and lightweight 3 button operation New Zealand / Australian Plug Lead Built-in mains socket connector Inbuilt auto sequence tests 250V/500V Insulation Test Low current earth bond test – Safe for IT equipment Setting inbuilt for long extension leads Hard plastic case Lead nulling function Additional setting for extension leads over 30m Supplied with 12 months warranty |
