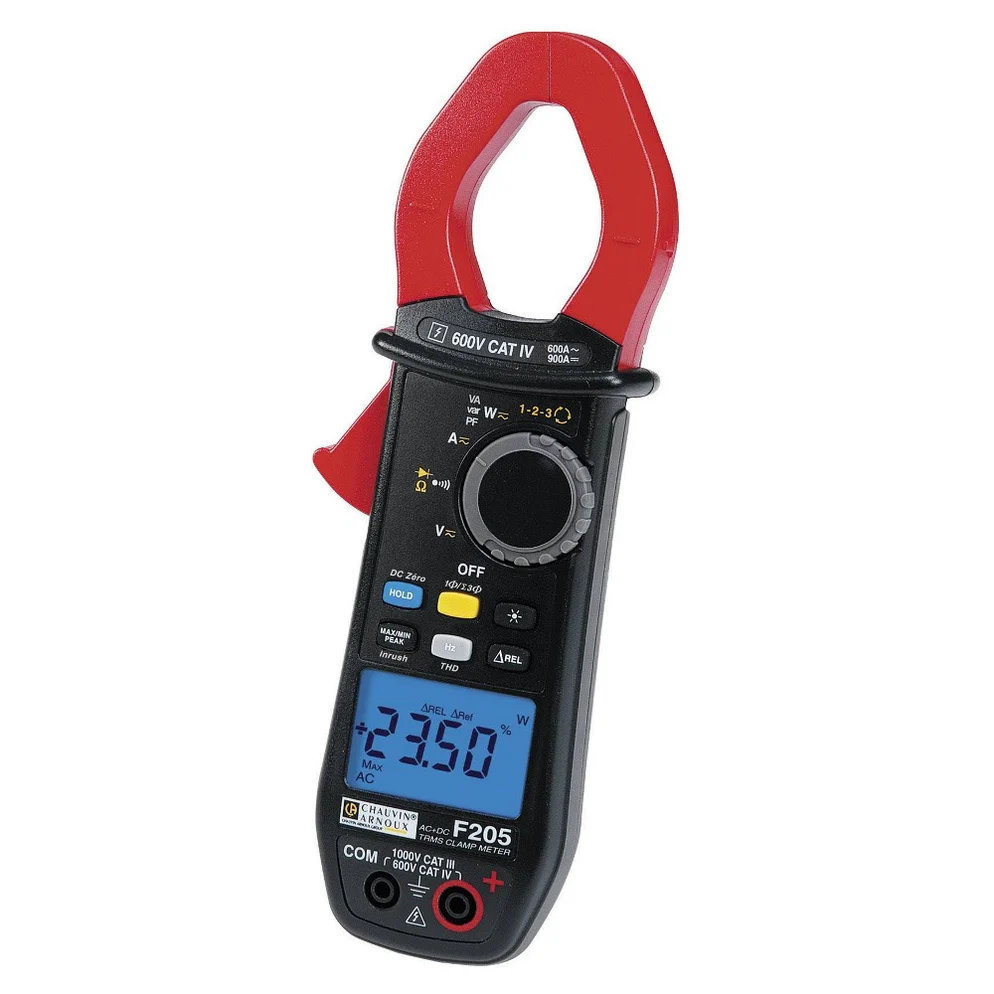

Chauvin Arnoux F205 True RMS AC/DC Digital Power Harmonic Clamp Meter


Sold By:
Inhouse product

Price:
$465.00 /Unit

Quantity:
(2 available)

Total Price:

+ Shipping & taxes calculated at checkout on cart checkout page
[Estimated delivery: 5–7 business days]
See Returns Policy
View Warranty & Support Policy


Note: Products sourced from authorized distributors. All items covered by manufacturers / brands warranty.

Share:
Description

The Chauvin Arnoux F205 is a True RMS AC/DC digital clamp meter designed for low- to medium-power applications in tertiary or industrial electrical installations. It is a multi-function device that is particularly useful for troubleshooting and sizing electrical power supplies. The meter features a fast 12-bit TRMS digital acquisition system for accurate measurements, regardless of the signal's type or waveform.

Key Features
  • TrueInrush: A function designed to accurately measure motor startup currents.
  • Harmonic analysis: Helps diagnose power quality issues by measuring total harmonic distortion on both voltage and current.
  • Automatic detection: The meter automatically detects if the signal is AC or DC.
  • Phase rotation:Features a 2-wire method for phase rotation detection.
  • Data hold: Allows the user to freeze measurements on the screen.
  • Min/Max/Peak measurement: Records minimum, maximum, and peak values over time.
