Hioki LR8450-01 Memory HiLogger, 330 channels

Description

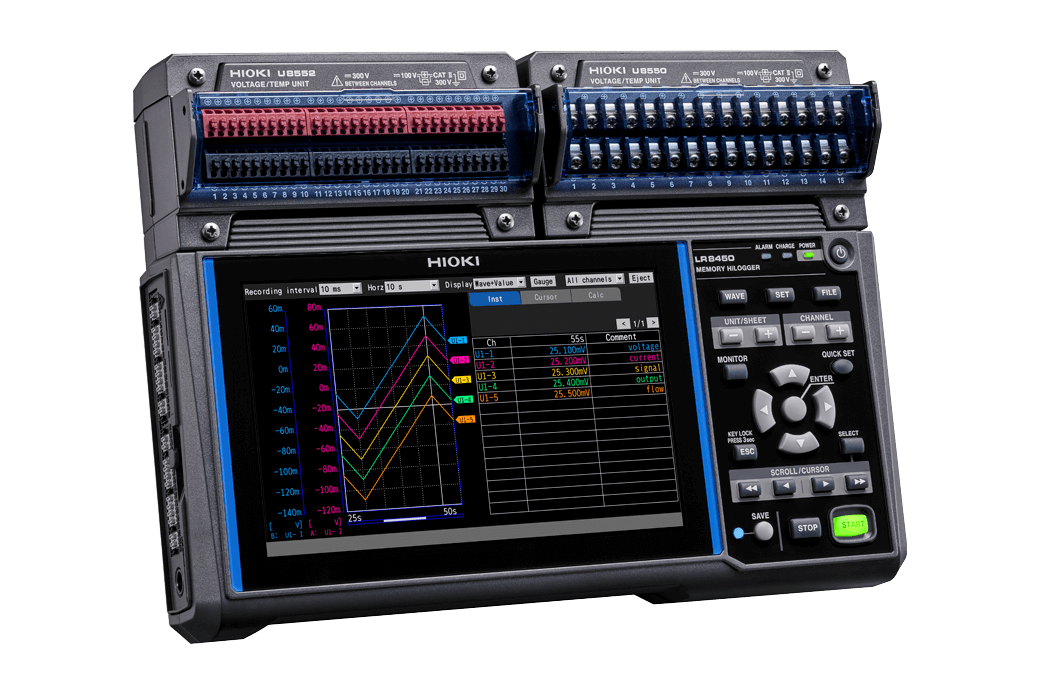

The Hioki LR8450-01 is a high-speed, wireless-enabled Memory HiLogger that offers massive channel expansion up to 330 analog input channels. It is an upgrade from the standard LR8450 model, adding wireless LAN functionality to support remote measurement and data collection from optional wireless units. The modular design allows for flexible configuration with a variety of plug-in and wireless modules, which are sold separately.

Key Features

• Remote monitoring: Users can observe measurement data on a PC or tablet from a remote location using the LR8450-01's built-in HTTP server or acquire data files via its FTP server.
• Integrated sensors: It can directly connect to Hioki current sensors and Hukseflux heat flow and temperature sensors for specialized measurements.
• Data storage: Measurements are recorded on an SD card or USB drive. Wireless units include a buffer memory to prevent data loss in case of temporary communication interruptions.
• Wireless LAN model: The LR8450-01 is equipped with wireless LAN, allowing it to connect to wireless measurement units placed in remote or hard-to-wire locations. This feature reduces wiring effort and enhances safety, particularly in setups involving high voltage or hazardous environments.

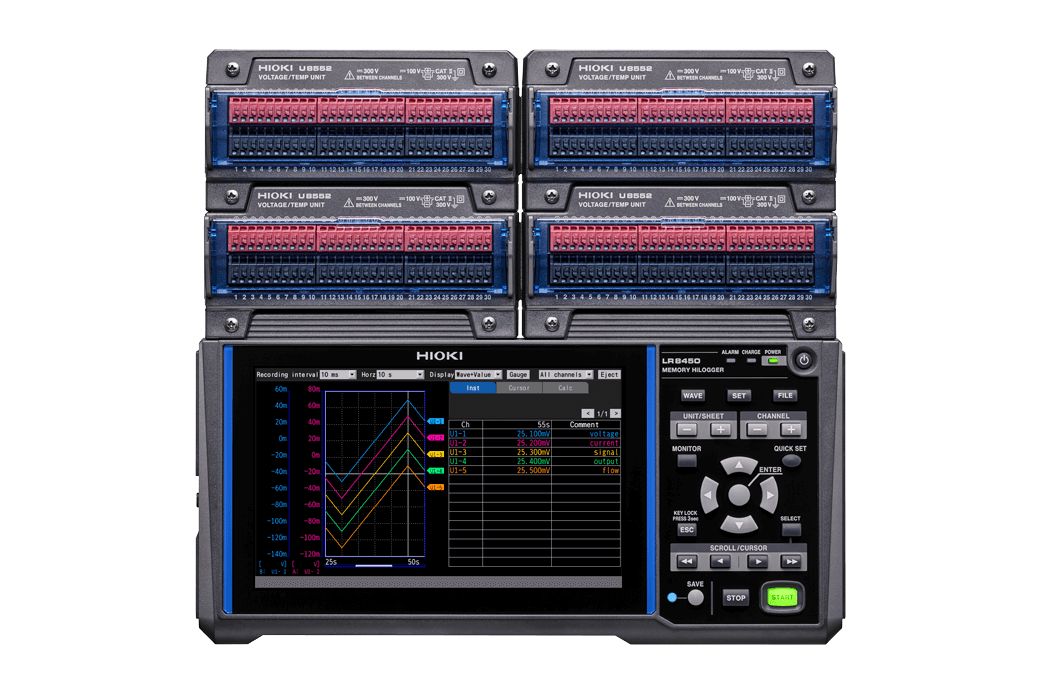

• Channel expansion up to 330 channels: The LR8450-01 base unit has four slots for plug-in modules and can connect with up to seven wireless units. By combining high-density modules, such as four 30-channel plug-in units and seven 30-channel wireless units, the system can achieve a maximum of 330 channels.
• High-speed sampling: It supports a maximum sampling speed of 1 ms (1 kHz) for certain modules, enabling dynamic measurements of strain and voltage.
• High noise resistance: The logger features a revamped design that significantly reduces the impact of high-frequency noise from inverters and batteries, ensuring stable and reliable logging, especially for temperature measurements.
