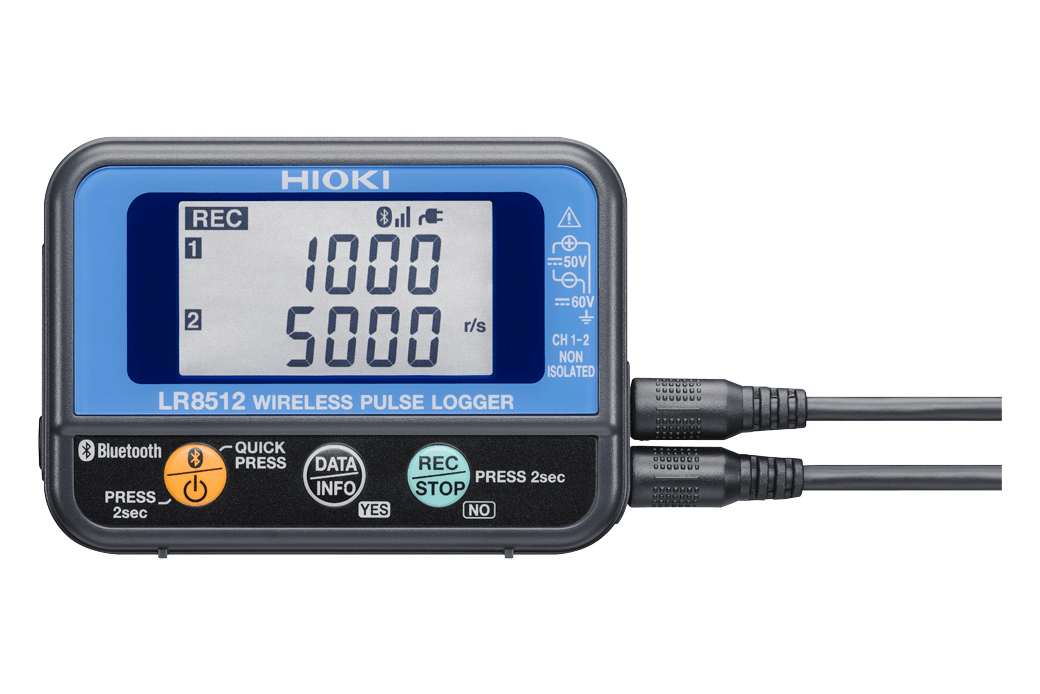

Hioki LR8512 Wireless Pulse Logger, 2 Channels

Description

The Hioki LR8512 Wireless Pulse Logger is a compact, two-channel data logger designed for recording pulse integration and revolution counts. As part of Hioki's wireless mini logger series, it uses Bluetooth® technology to wirelessly transmit measured data to a compatible device, such as the Hioki LR8410 Wireless Logging Station or an Android tablet.

Key Features

• Battery life: Up to 2 months with a 1-minute recording interval and Bluetooth® off, or up to 14 days with a 1-second recording interval and Bluetooth® on.
• Dimensions and weight: Compact design (85 mm W x 61 mm H x 31 mm D) and lightweight (95 g without batteries).
• Input format: Non-voltage "a" contact, open collector, or voltage input (0 to 50 V DC).
• Recording capacity: 500,000 data points per channel.
• Recording intervals: Selectable from 0.1 to 30 seconds or 1 to 60 minutes (16 selections).
• Connectivity: Bluetooth® wireless technology for communicating with a base station or mobile device. The communication range is approximately 30 meters line-of-sight.
• Data storage: Data is reliably stored in the logger's internal memory, even if communication is interrupted.
• Measurement channels: 2 pulse input channels (common ground).
• Measurement items: Pulse integration (cumulative/instant), revolutions per second (r/s), and logic (ON/OFF signals).
