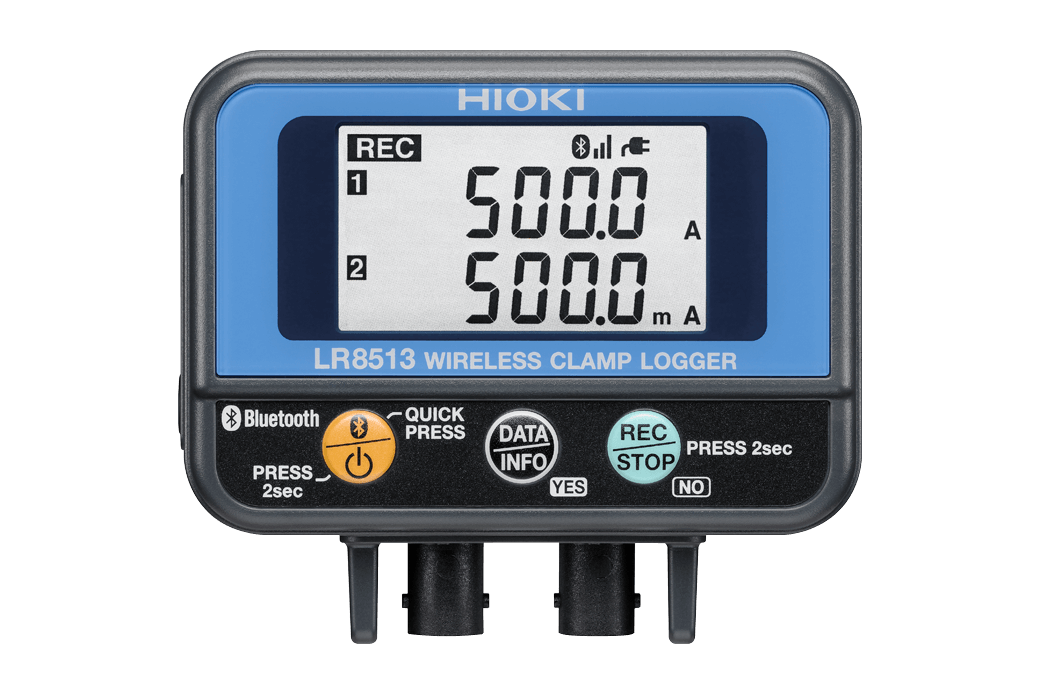

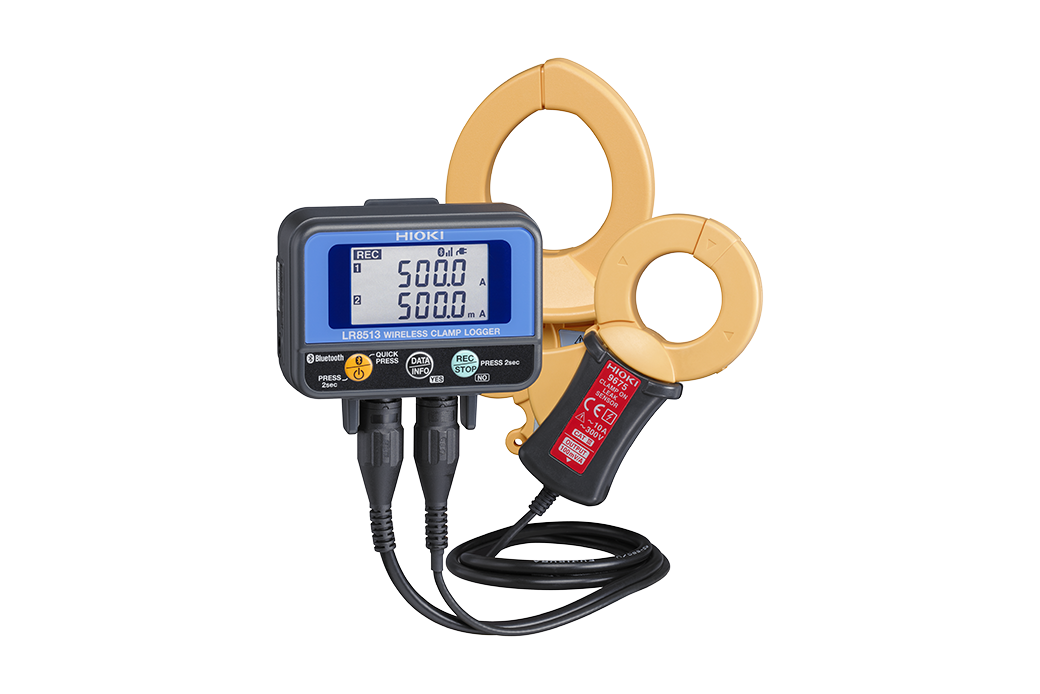

Hioki LR8513 Wireless 2-Channel AC/DC Current Clamp Logger, 2,000 A

Description

The Hioki LR8513 is a compact, 2-channel wireless clamp logger designed for measuring AC and DC load currents as well as AC leakage current. As part of Hioki's wireless mini logger series, it uses Bluetooth® technology to wirelessly transmit measured data to a compatible device, such as the LR8410 Wireless Logging Station or an Android™ tablet. A current sensor is required to make measurements and is sold separately.

Key Features

• Measurement channels: 2 channels for measuring current.
• Current types: Measures AC and DC load current and AC leak current.
• Wide current range: The LR8513 can be used with a variety of clamp sensors, allowing it to measure a wide range of current from 500 mA to 2000 A.
• Wireless connectivity: Built-in Bluetooth® wireless technology enables remote data collection from up to 30 meters away (line-of-sight), ideal for monitoring inside distribution panels or other hard-to-access locations.
• Three-way power: The logger can be powered by two AA alkaline batteries, an AC adapter (sold separately), or an external 5 to 13.5 V DC power supply.
• Long-term recording: Stores up to 500,000 data points per channel. With a 1-minute recording interval and Bluetooth® off, the battery life can be as long as 3 months.
• Compact size: The small size allows it to be placed in tight spaces, such as inside a distribution panel, for seamless and safe monitoring.
• Power measurement: Can be used to measure power by setting the voltage and power factor.
• Software support: Data can be downloaded and analyzed using Hioki's PC application or the Wireless Logger Collector app for Android devices.
