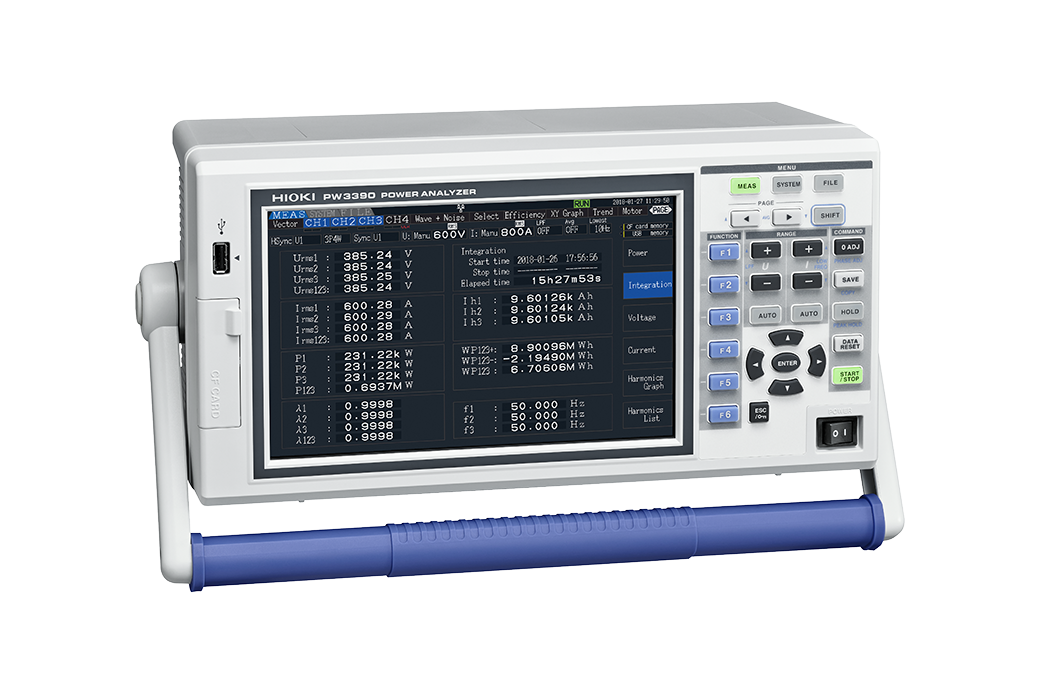

Hioki PW3390-02 Power Analyzer, 0.5Hz to 200kHz DC, D/A Output

Description

The Hioki PW3390-02 is a specific model of the PW3390 power analyzer that comes with a built-in D/A output for 16 channels of analog output. This version is designed for detailed analysis of power electronics, motors, and inverters, with a wide frequency band from DC up to 200 kHz.

Key Features

• Built-in D/A output: The "-02" suffix denotes the inclusion of a D/A output feature, which provides analog output at a 50 ms update rate for up to 16 measurement parameters. This feature allows the analyzer to connect with other recording devices, such as data loggers.
• High accuracy: It provides a basic power accuracy of \(\pm 0.04\%\) reading and \(\pm 0.05\%\) full scale.
• Measurement channels: The analyzer has 4 voltage and 4 current input channels, with full isolation between channels.
• Wide frequency band: It measures from DC and 0.5 Hz up to 200 kHz.
• High-speed sampling: A 500 kS/s sampling rate and a 16-bit A/D converter ensure accurate capture of input waveforms, including those from high-frequency inverters.
• Interface options: It includes a range of interfaces for communication and data storage, such as LAN, USB, RS-232C, and a CF card slot.
