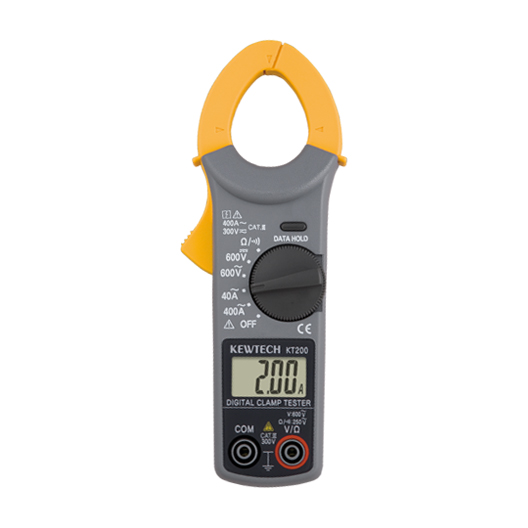

Kyoritsu KT200 Digital AC Clamp Meter, 400 A

Description

The Kyoritsu KT200 is a digital AC clamp meter capable of measuring AC current up to 400 A. It also functions as a digital multimeter, measuring AC/DC voltage and resistance, along with a continuity check.

Key Features

• 400A AC current measurement: Allows for reliable, non-intrusive current measurements by clamping the jaw around a conductor.
• Digital multimeter (DMM) functions: Measures AC voltage up to 600V, DC voltage up to 600V, and resistance up to 4000 Ω.
• Continuity buzzer: An audible alert sounds to indicate a continuous circuit.
• Data hold: The data hold function allows the user to freeze a measurement on the display for easier reading in hard-to-reach or poorly lit locations.
• Auto-ranging: Automatically selects the correct measurement range for voltage and resistance, simplifying operation.
• Ergonomic design: The compact body is shaped for comfortable, one-handed operation.
• Safety compliance: Meets international safety standards, including IEC 61010-1 for CAT III 300V (AC current) and CAT II 600V (other functions).
• Automatic power-off: A "sleep" feature conserves battery life by automatically shutting the unit down after a period of inactivity.
• Display: A digital display with a 4000-count resolution provides clear and accurate readings.
• Jaw size: The clamp jaw can accommodate conductors up to 30mm in diameter.
