Mitutoyo 104-204 Outside Micrometer Interchangeable Anvil, 30 to 36”

Description

The Mitutoyo 104-204 is a Series 104 interchangeable anvil outside micrometer with a 30 to 36-inch measuring range. It is a manual, analog tool designed for precise outside diameter (OD) measurements of large workpieces.

Key features

• Measurement range: This micrometer offers a wide measuring range of 30 to 36 inches.
• Interchangeable anvils: The micrometer comes with six interchangeable anvils and six setting standards, allowing for a versatile range of measurements.
• Resolution: It provides 0.001-inch graduations for accurate and precise measurements.
• Accuracy: The accuracy is \(\pm [0.00016"+0.00004(R/3)]\text{\ in}\), where R is the maximum range in inches.
• Ratchet stop: A built-in ratchet stop ensures a constant measuring force, providing repeatable and consistent measurements.
• Durability: The frame is constructed from high-grade tool steel and features a baked enamel finish for protection and durability.
• Carbide-tipped surfaces: The spindle and anvil measuring surfaces are carbide-tipped for enhanced wear resistance.

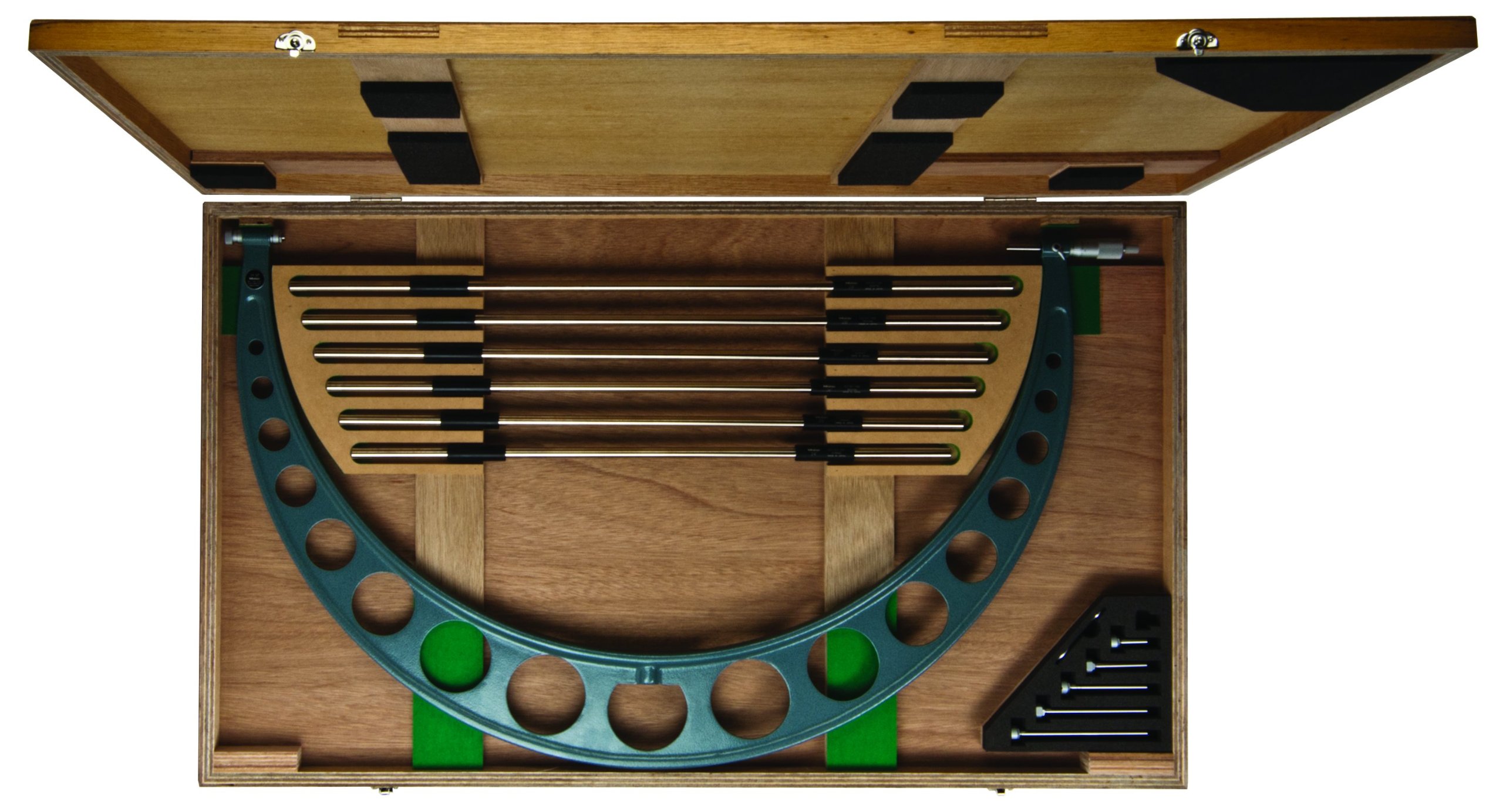

• Fitted wooden case: The tool is supplied in a fitted wooden case for safe storage and transport.
