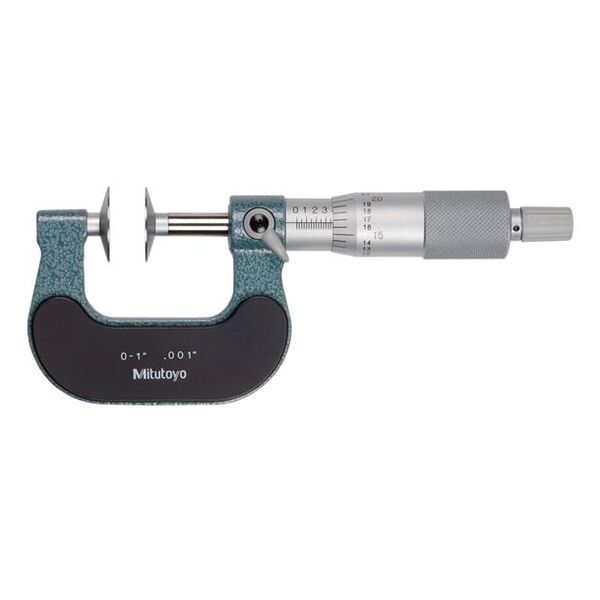

Mitutoyo 123-125 Disc Micrometer Hardened Steel, 0 to 1”

Description

The Mitutoyo 123-125 Disc Micrometer is a manual, non-digital micrometer with hardened steel measuring disks designed for measuring hard-to-reach features like the root tangent length of spur and helical gears. It measures in inches with a range of 0 to 1 inch.

Key features

• For hard-to-reach features: The thin, disk-shaped anvils can measure features with narrow clearances, such as the root tangent length of spur and helical gears, and the thickness of splines, fins, and ribs.

• For fragile materials: The wide, flat faces of the disks apply even, dispersed measuring force. This makes it ideal for measuring easily deformed or delicate workpieces like paper, film, foam, or thin rubber sheets without causing damage.
• Hardened steel disks: The measuring disks are made from hardened steel for increased longevity and reliability.Precision and accuracy: The analog micrometer has a graduation of 0.001" and an accuracy of \(\pm 0.0002"\).
• Consistent force: A ratchet stop mechanism provides uniform pressure on the workpiece, ensuring precise, repeatable measurements and preventing over-tightening.
• Clear, easy-to-read scale: The spindle and sleeve feature a satin chrome finish with laser-etched graduations for high contrast and easier reading.
• Durable frame: The frame has a hammertone baked enamel finish that resists chipping and scratching for increased durability.
