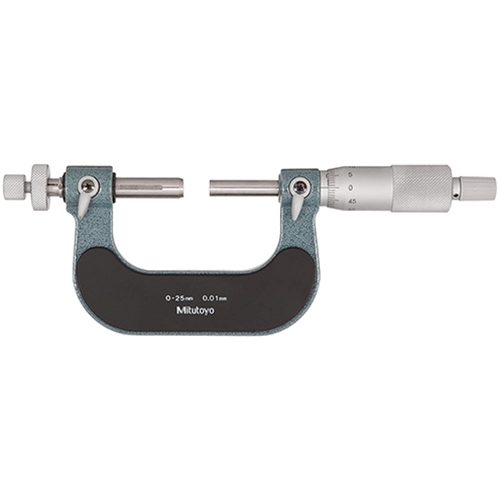

Mitutoyo 124-173 Series 124 Interchangeable Ball Anvil-Type Gear Tooth Micrometer, 0 to 25 mm, 0.01 mm graduation

Description

The Mitutoyo 124-173 Series 124 interchangeable ball anvil-type gear tooth micrometer is a mechanical tool designed for measuring the over-pin diameter of gears. It has a measurement range of 0 to 25 mm, a graduation of 0.01 mm, and an accuracy of ±4 µm.

Key features

• High accuracy: The micrometer offers high precision for an analog model, with an accuracy of \(\pm 4\mu \text{m}\) (0.004 mm) and a graduation of 0.01 mm.Satin-chrome finish: The thimble and sleeve have a satin-chrome finish, which provides a non-glare surface that is easy to read.
• Mechanical operation: As a mechanical device, it does not require batteries, making it reliable for use in industrial settings where electronics may be vulnerable.
• Interchangeable ball tips: It features interchangeable ball anvil and spindle tips. This allows for measurement of different gear modules (0.5 to 5.25) with the appropriate optional accessories.
• "Over-pin diameter" measurement: It is specifically designed to measure the "over-pin diameter" of gears, a common method for measuring gear dimensions.
• Durable measuring faces: The ball-tipped measuring faces are made of carbide-tipped steel, which is highly resistant to wear for long-lasting performance.
