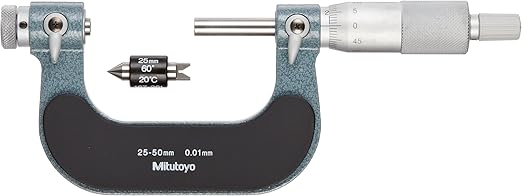

Mitutoyo 126-126 Screw Thread Micrometer Interchangeable Tips, 25 to 50 mm

Description

The Mitutoyo 126-126 Screw Thread Micrometer is a non-digital measuring tool from the Series 126 product line, used for measuring the pitch diameter of external screw threads in the range of 25 to 50 mm. It is designed with interchangeable anvil-spindle tips to accommodate a wide variety of threads.

Key features

• Thread measurement: Measures the pitch diameter of external screw threads. It is designed to be used with a V-shaped anvil and conical spindle inserts, which are sold separately and must be interchanged to match different thread types.
• Uniform pressure: Includes a ratchet-stop mechanism that applies consistent pressure to the workpiece. This ensures precise, repeatable, and accurate measurements between users.
• Heat insulation: Features a heat shield on the frame to protect the tool from thermal expansion caused by the user's hand, preserving measurement accuracy during prolonged use.
• Durable construction: The frame has a hard-wearing baked enamel finish, while the thimble and sleeve have a satin chrome finish for added durability and rust resistance.
• High precision: Offers a high level of accuracy with a measuring range of 25 to 50 mm, a graduation of 0.01 mm, and an accuracy of $\pm$0.004 mm.
• Included standard: For calibrating the micrometer, a standard bar is included with all models over 25 mm.
• Convenient storage: Comes in a fitted plastic case for protection and easy transport.
