Mitutoyo 126-128 Screw Thread Micrometer Interchangeable Tips, 75 to 100 mm

Description

The Mitutoyo 126-128 Screw Thread Micrometer is a metric, analog micrometer with a 75 to 100 mm range, designed for measuring the pitch diameter of various screw threads. It features interchangeable anvil and spindle tips (sold separately) to measure different thread types.

Key features

• Interchangeable tips: It accepts interchangeable V-anvil and conical spindle tip sets, which must be purchased separately. These allow for measuring various metric, unified (60°), and Whitworth (55°) screw thread sizes.
• Constant-force mechanism: A ratchet stop applies uniform measuring pressure, ensuring precise and repeatable measurements.
• High-quality construction: The micrometer features a highly stable frame and a heat shield to preserve accuracy during prolonged use.
• Easy-to-read scale: The thimble and sleeve have a satin chrome finish for easier reading of the scale.
• Calibration standard: The tool is supplied with a standard bar to assist with calibration.
• Secure measurements: A spindle lock is included to hold the measured value in place.

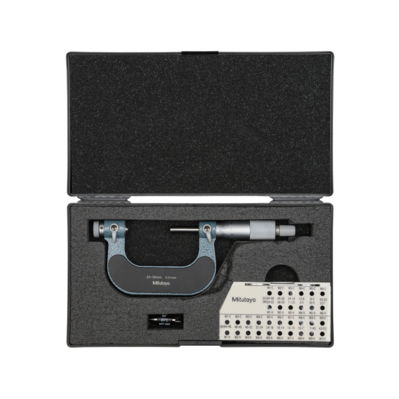

• Protective case: It comes in a fitted plastic case for protection and storage.
