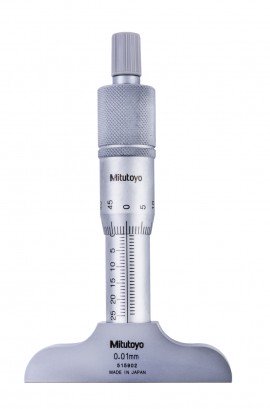

Mitutoyo 128-101 128 Series Metric Depth Micrometer, 0 to 25 mm

Description

The Mitutoyo 128-101 128 Series Metric Depth Micrometer is a precision tool for measuring the depth of holes, slots, and shoulders. It has a measurement range of 0 to 25 mm with a vernier scale for fine unit measurements.

Key features

• Precision and readability: The micrometer has a measurement range of 0 to 25 mm with 0.01 mm graduations on its vernier scale, allowing for detailed and precise readings. The satin chrome finish on the thimble reduces glare and improves readability.

• Constant measuring force: A ratchet stop is included to provide consistent, uniform pressure on the measuring surface. This helps reduce operator-to-operator variability and improves measurement repeatability.

• Stable base: The micrometer features a hardened, ground, and micro-lapped tool steel base measuring 63.5 x 16 mm, which provides a stable and reliable platform for measurements.

• Secure measurements: A measuring rod clamp is built-in to hold the measuring rod firmly in place after a reading has been taken. This ensures the measurement does not shift during handling.

• Durable rod: The 4mm diameter measuring rod is available in a standard steel version, with a carbide-tipped option also offered for enhanced durability and wear resistance in demanding industrial environments.
• High accuracy: The tool provides high-precision measurements with an accuracy of $\pm$3 µm.
