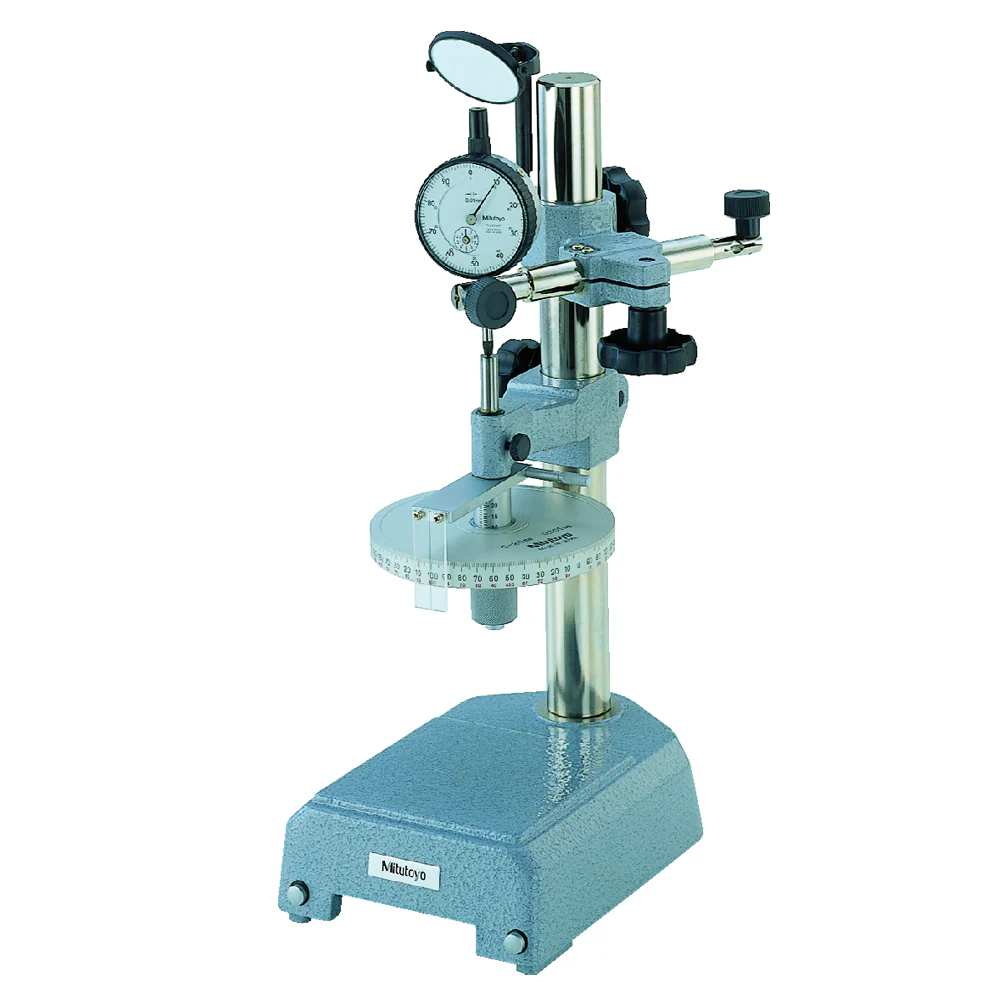

Mitutoyo 170-101-10 Series 170 UDT-2 Dial Gauge Tester, 0 to 1", 0.0001"

Description

The Mitutoyo 170-101-10 is not a bore gauge, but a dial gauge tester used for calibrating dial indicators, dial test indicators, and dial bore gauges. Information on the specific model can be found through official Mitutoyo product downloads or reseller websites.

Key features

• Precision micrometer head: The tester is built around a specially designed 0–1 inch (0–25 mm) micrometer head with a large, rigid disc. This large disc provides a stable reference surface for accurate measurements during calibration.
• Calibration of multiple gauge types: This model is used to test the measuring accuracy of dial indicators, dial test indicators, and dial bore gauges.
• Built-in holding fixtures: The UDT-2 is equipped with rigid holding fixtures for securely mounting gauges during the calibration process.
• Dual clamping stem diameters: It features clamping stems that can accommodate gauges with stem diameters of both 0.25 inches (6.35 mm) and 0.375 inches (9.52 mm)
• High accuracy: The tester offers a high level of accuracy, with a resolution and accuracy of \(\pm 0.0001\) inches.
• Optional stand for bore gauges: When paired with the optional stand (part #12AAK824), the tester can be used to inspect dial bore gauges.
• Versatile positioning: The unit's design allows it to support bore gauges both horizontally and vertically with the optional stand.
