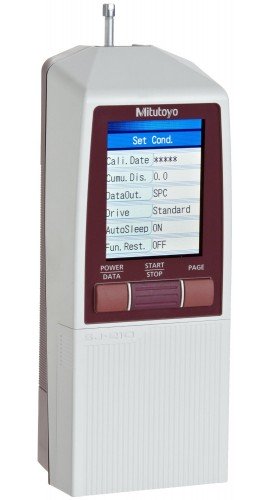

Mitutoyo 178-565-11A SJ-210 Portable Surface Roughness Tester, Transverse Tracing Type, 0.75mN Measuring Force

Description

The Mitutoyo 178-565-11A SJ-210 is a portable surface roughness tester featuring a transverse tracing drive unit and a \(0.75\text{mN}\) measuring force detector. This compact and lightweight device is designed for easy, on-site measurements and is ideal for industries such as automotive, aerospace, and general manufacturing.

Key features

• Transverse tracing drive unit: This drive unit is capable of taking measurements in a transverse direction, which is useful for specialized applications.
• Highly portable: The SJ-210 is designed for handheld use on the factory floor, with a separate drive unit that can be detached for easy access to tight spaces and vertical or upside-down measurements.
• 2.4-inch color graphic LCD: The backlit color screen provides clear and intuitive navigation and can display calculation results, assessed profiles, load curves, and amplitude distribution curves.
• Data storage: The unit has internal memory for storing up to 10 measurement conditions and one measured profile. An optional memory card can be used for expanded storage.
• Multiple standards compliance: The SJ-210 adheres to several industry standards, including JIS, ISO, ANSI, and VDA.
• Password protection: You can set a password to prevent unintended operation and protect your saved settings.
• Multi-language support: The interface supports 16 languages, which can be changed as needed.
• Dual power supply: The device can be powered by either the built-in rechargeable battery or an AC adapter.
