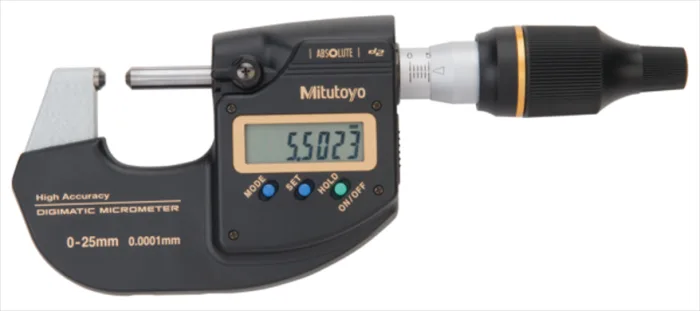

Mitutoyo 293-100-20 High Accuracy Digimatic Micrometer, 0 to 25 mm

Description

The Mitutoyo 293-100-20 is a high-accuracy Digimatic micrometer with a 0 to 25 mm measuring range. It is a premium digital micrometer designed for applications requiring extremely precise measurements with a hand-held tool.

Key features and specifications:

• High accuracy: Features a maximum permissible error of only \(\pm 0.5\mu m\).
• High resolution: Can switch between \(0.0001\text{\ mm}\) and \(0.0005\text{\ mm}\) resolutions.
• Absolute (ABS) rotary sensor: This innovative technology retains the origin point even when the power is off, so you don't have to reset it each time you use the tool.
• Constant-force mechanism: A high-performance mechanism provides a steady measuring force of 7–9 N for repeatable and stable measurements.
• Rigid frame: The durable, rigid frame helps to minimize error when taking handheld measurements.
• Removable heat shield: This minimizes the error caused by the thermal expansion of the frame from your body heat.
• Carbide-tipped measuring faces: The measuring faces are carbide-tipped for enhanced durability and wear resistance.
• LCD display: The digital LCD is clear and easy to read.
• Functions: Includes Preset, Zero-Setting, Data hold, Function lock, Auto power off, and measurement data output.
• Battery: Uses a CR2032 lithium battery with a battery life of approximately 2 years under normal use.
• Included: Comes with a box, adjustment key, screwdriver, battery, heat shield.
