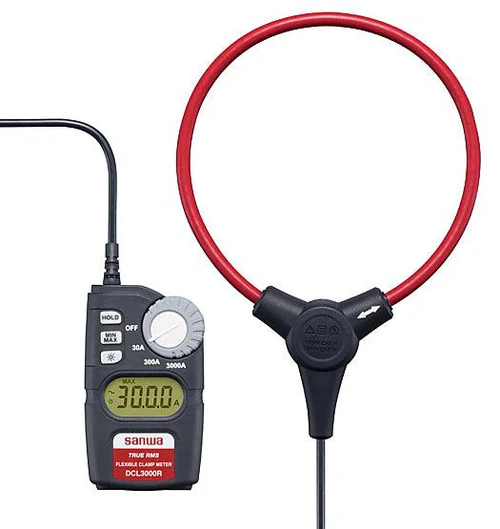

Sanwa DCL3000R True RMS AC Clamp Meter with Flexible Conductor

Description

The Sanwa DCL3000R is a True RMS AC clamp meter featuring a flexible current sensor. This design allows it to measure AC current in confined or hard-to-reach spaces where a traditional clamp meter would not fit.

Key Features

• Flexible sensor (CT): The air-core flexible sensor can be looped around conductors up to 150 mm in diameter, which is especially useful for tight spots.
• True RMS measurement: The meter measures the True Root Mean Square value of AC current, which provides accurate readings for non-sinusoidal waveforms.
• High-current capacity: It can measure AC currents up to 3000 A, with a maximum overload protection input of 5000 A.
• Clear digital display: The large 3150-count LCD includes a backlight for easy viewing in dimly lit areas.
• Data functions: It features data hold to freeze the current reading on the display and Min/Max value hold to capture the minimum and maximum measured values.
• Power-saving: To conserve battery life, the meter has an auto-power-off feature that activates after 15 minutes of inactivity.
• Built-in light: An integrated LED light helps to illuminate the measurement target.
