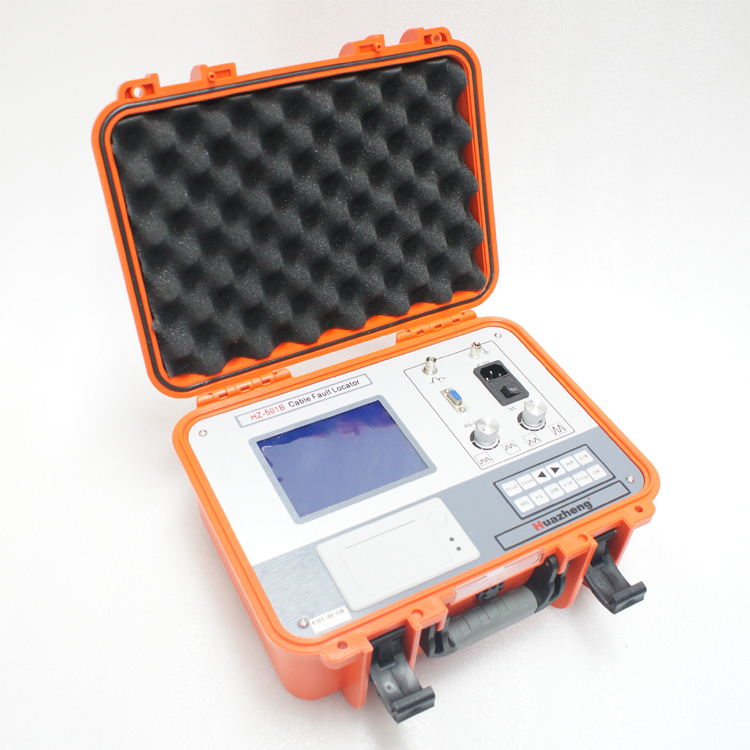

Huazheng Electric HZ-501B Underground Cable Fault Location System
Inhouse product
-
TES-3900 digital AC Clamp Meter
$105.00 -
TES-3092 AC/DC Clamp Meter
$160.00
| Overview: The cable fault tester, has simple operating software interface, adopts industrial integrated circuit and device, also has built-in large capacity lithium-ion battery, stable, reliable, and easy to use. The cable fault tester is a special instrument for measuring and analyzing the power cable fault state and fault distance. The cable fault tester adopts modern electronic technology to realize signal filtering, acquisition, data processing, graphic display and graphic analysis to complete cable speed measurement, cable length test, cable fault distance test and resistance measurement. The cable fault tester is suitable for low resistance, short circuit, open circuit and break fault, leakage high resistance and flashover high resistance fault of power cable, coaxial cable, street lamp cable and buried wire of various materials with different sections and different media. The technical parameters meet the standard requirements of "DL/T 849.1 General Technical Conditions for special tester for power equipment Part 1: Cable Fault flash Tester" and "JJF1042 Calibration Specification for Cable Fault Tester". |
| Product Feature: • Industrial grade 5.7 inch two-color screen; • Single-chip microcomputer centralized control, push-button operation mode, strong anti-interference ability; • With distance, speed measurement, resistance measurement and other functions; • Micro printer and host integration, can print test waveform and test report at any time; • Automatic continuous sampling, waveform capture timely and accurate; • Low voltage pulse sampling method, flashover sampling method; • Built-in large capacity battery pack, easy to use; • Adopt protective chassis, not lower than IP54. Technical Parameter • Sampling frequency：100MHz； • Low-voltage pulse amplitude：35V； • Pulse width：0.2uS/2uS； • Minimum resolution: 1.0m • Test dead zone：≤35m； • Distance detection range：≥32km； • Measurement error：≤±（0.5％×L+1m），L means length of power cable； • Communication interface：RS232； • Power supply method：Charge AC110V～240V，50Hz/60Hz；Built-in 5200mAH lithium battery power supply； • Working condition：-20～+65℃，relative humidity ≤90％； • Size：358L×284W×168H • Weight：4.6kg |
