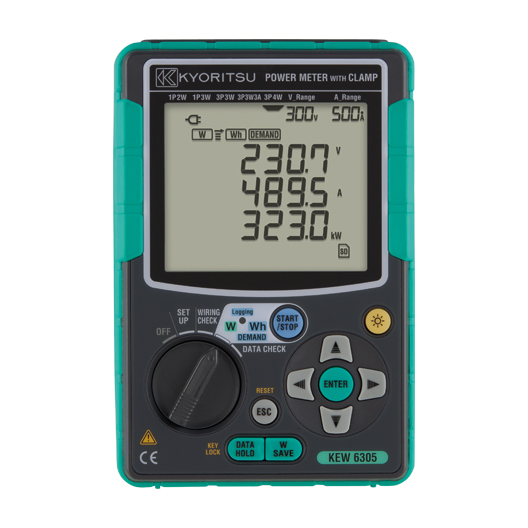

Kyoritsu 6305 Compact Power Meter

Description

The Kyoritsu 6305 is a power meter designed for comprehensive real-time monitoring, recording, and analysis of single- and three-phase power systems. It is often referred to as a power quality analyzer and is used for energy monitoring to help achieve cost savings.

Key Features

• Comprehensive analysis: Monitors single- and three-phase systems in real-time, providing measurements for voltage, current, frequency, and power factor.
• Detailed power data: Measures active, apparent, and reactive power and energy.
• High accuracy: Features an active power accuracy of ±0.3%rdg±0.2%f.s.
• Safety features: Includes an automatic wiring check function to prevent incorrect connections.
• Data logging: Has a large 2 GB memory capacity using a built-in SD card interface. The recording interval is adjustable from 1 second to 1 hour.
• Remote monitoring: Allows for real-time and remote measurements via an Android application.
• PC software: Comes with Windows software for data analysis and instrument settings, connecting via USB or Bluetooth®.
• Sensor variety: Supports a wide selection of clamp sensors (from 0.1A to 3000A) and automatically recognizes the sensor type.
• Flexible power supply: Utilizes a dual power system, operating on both AC line power and batteries.
