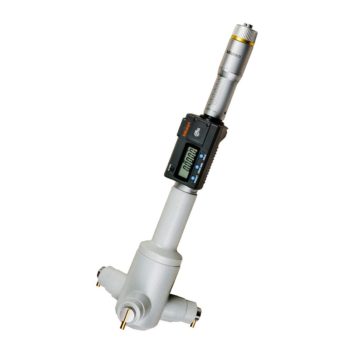

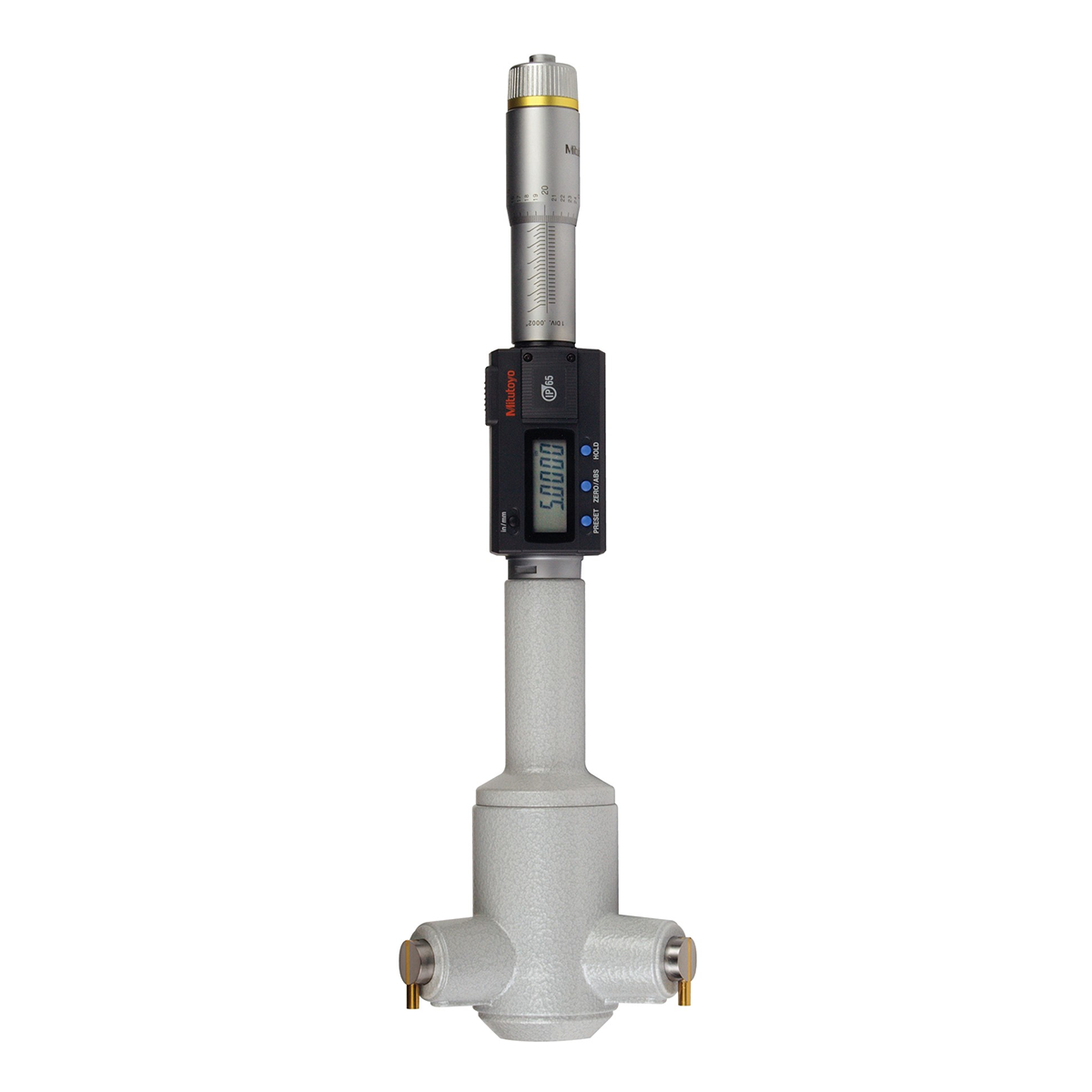

Mitutoyo 468-275 Digimatic Holtest Internal Micrometer, 5-6" Range

Description

The Mitutoyo 468-275 Digimatic Holtest is a 3-point internal micrometer with a 5-6 inch (127–152.4mm) measuring range. It is designed for accurate and reliable measurement of internal diameters and features a digital LCD display and titanium-nitride (TiN) coated contact points for durability.

Features and specifications

• Measurement range: 5 to 6 inches (127 to 152.4mm).

• Measurement method: Three-point contact for self-centering and precise measurement of internal diameters.

• Resolution: 0.0001 inch or 0.001mm.

• Accuracy: ±0.0002 inches (±0.005mm).

• Contact points: Coated with titanium nitride (TiN) for high durability and impact resistance.
• LCD display: Features a large digital readout for easy viewing.

• Ratchet stop: Provides a constant measuring force to ensure consistent and repeatable measurements.

• Protection level: IP65-rated, offering a high level of protection against dust and water splashes.
• Data output: SPC data output is included for easy data management.

• Additional features:-

• Functions include Presetting, Zero/ABS, Data Hold, and an alarm for low voltage or counting errors.
  It supports both ABS (absolute) and INC (incremental) measurement modes.

• An optional extension rod is available for measuring deep holes.
  Power: Uses two SR44 batteries with an approximate battery life of 8 months under normal use.
